At-home UTI Urinalysis Analyzer — Ben Buie Design

I am currently working with three Brown University Biomedical Engineering seniors to develop an at-home UTI urinalysis analyzer, redesigned for self-care, longitudinal tracking, and decreased clinical visits.

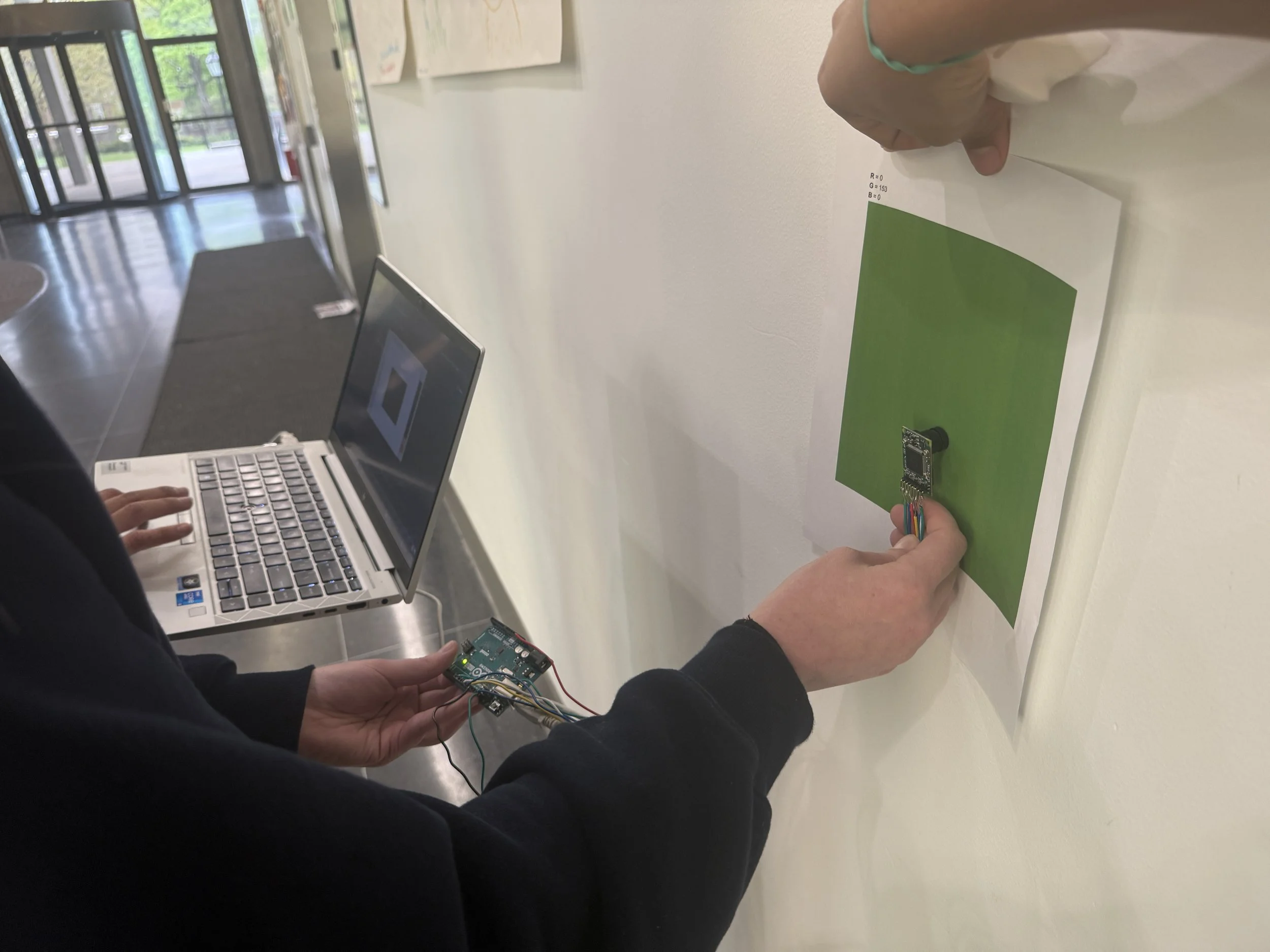

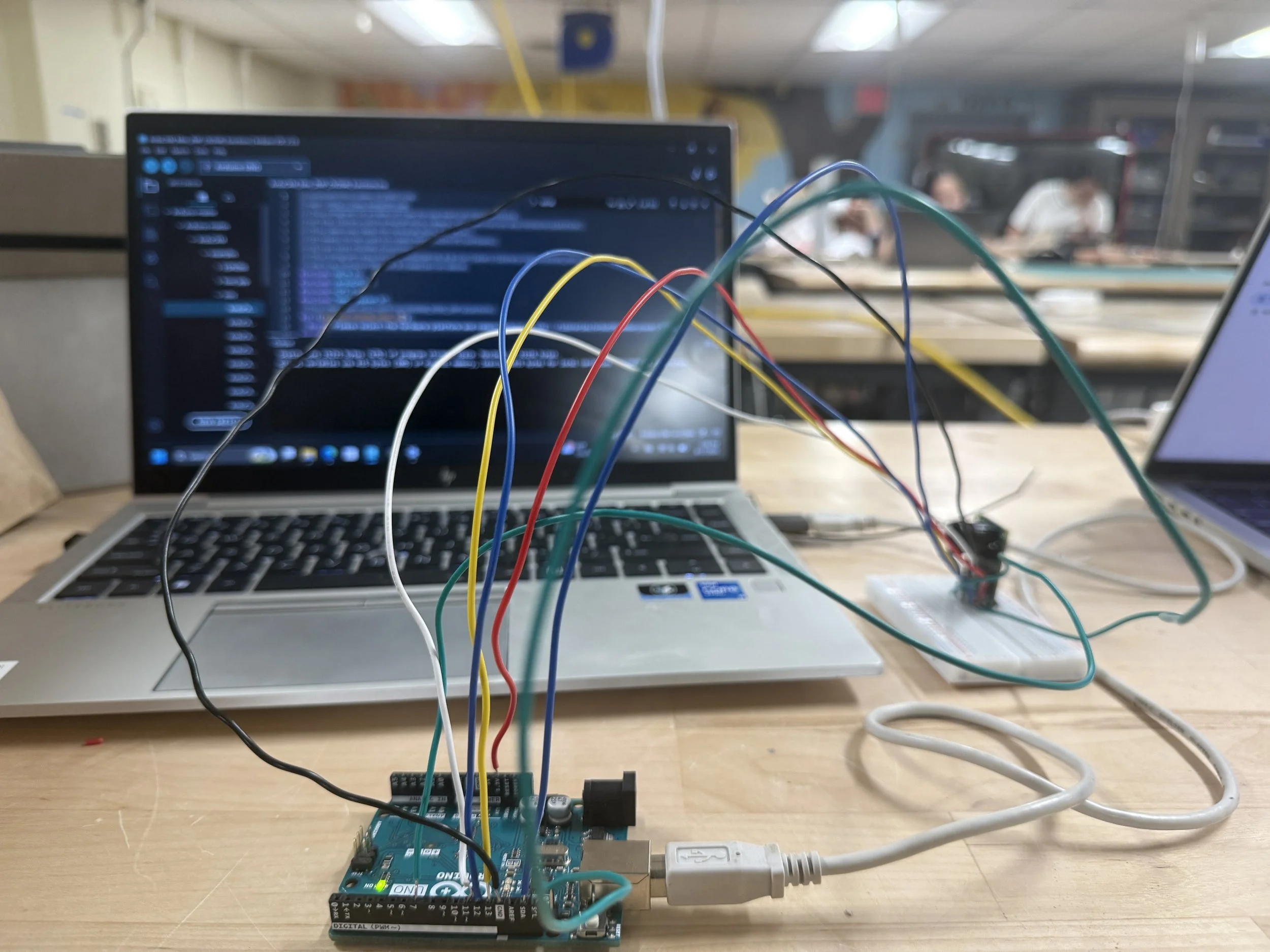

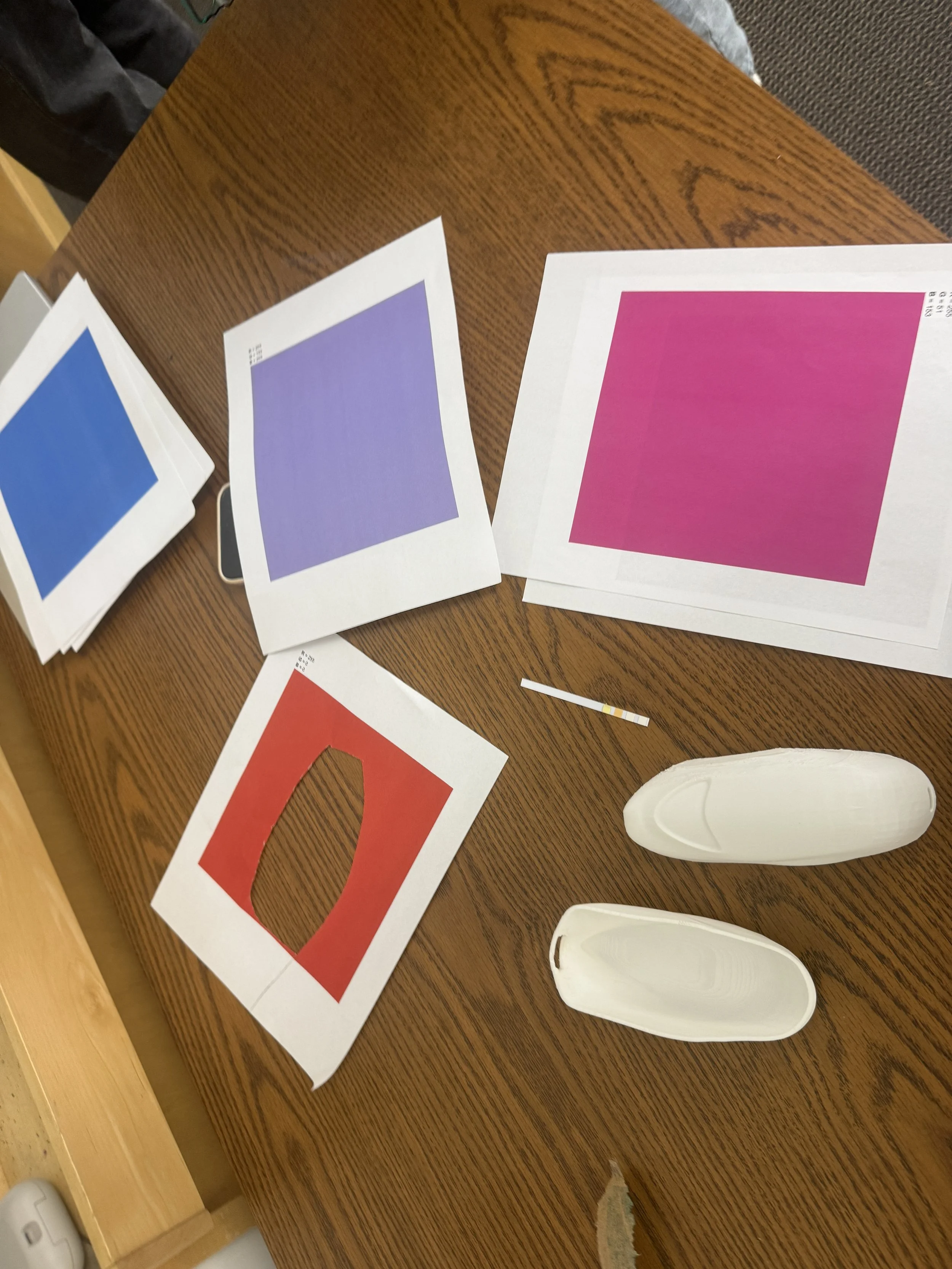

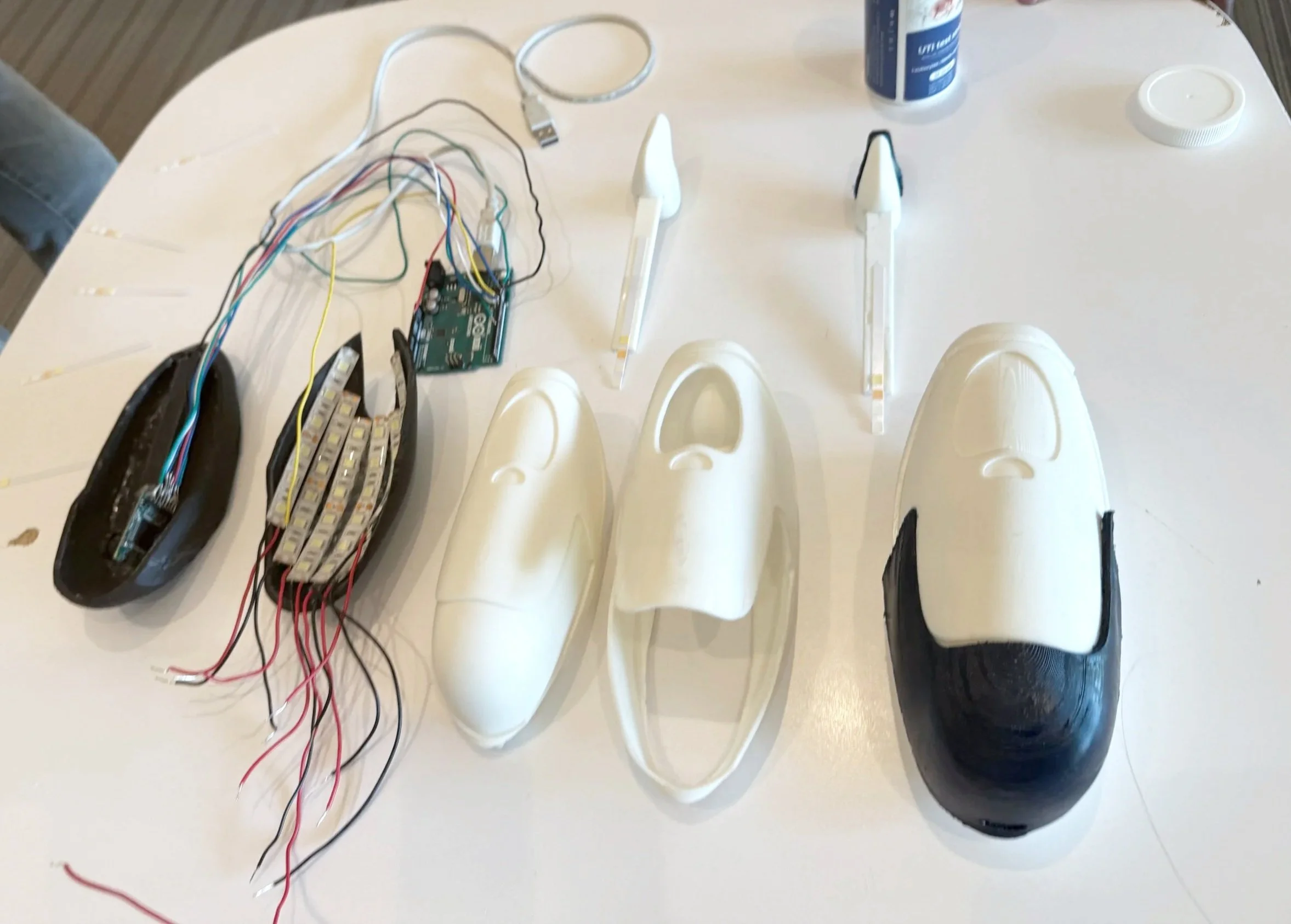

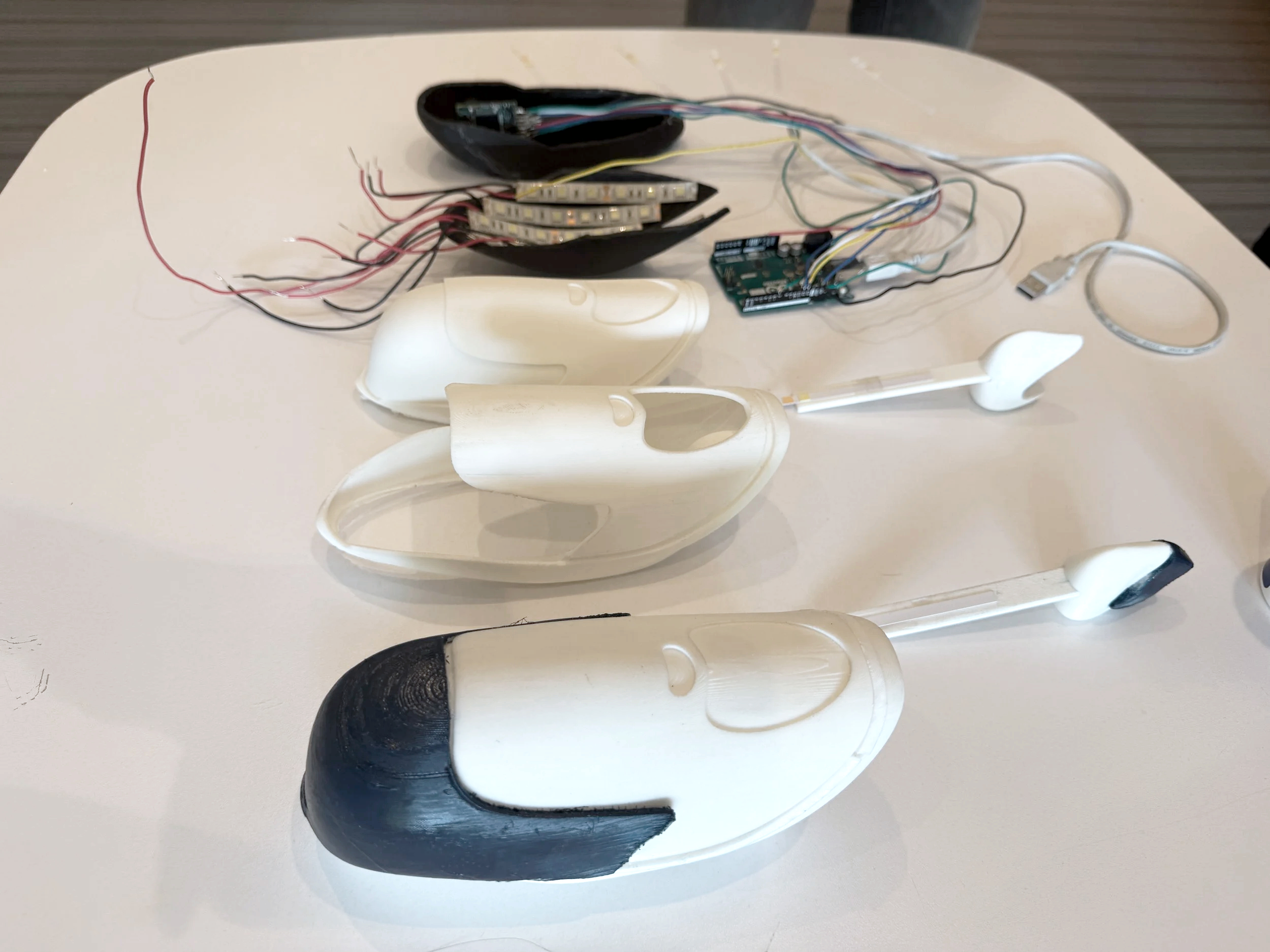

We have produced a needs statement, proof of concept, and a looks-like model; we will have a fully functioning prototype and a patent by May 2026, to be entered in the 2026 Medtronic/BMES Student Design Competition.

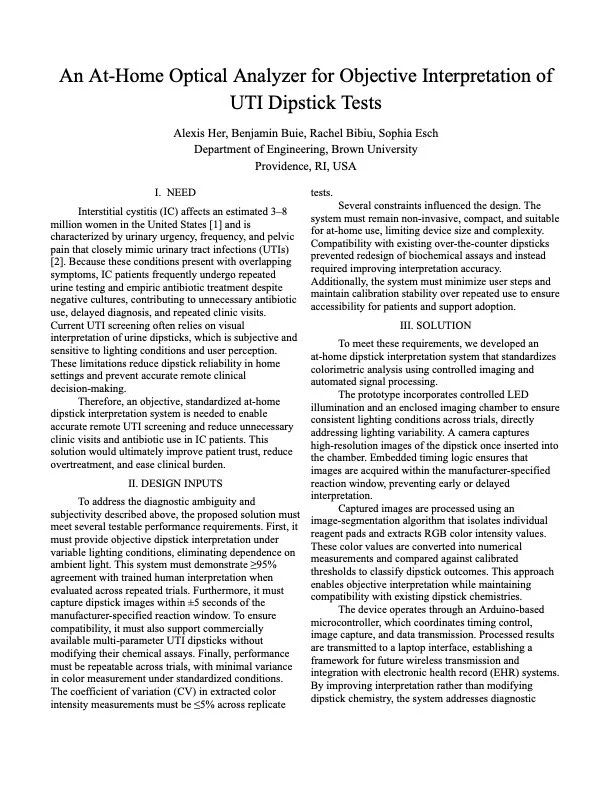

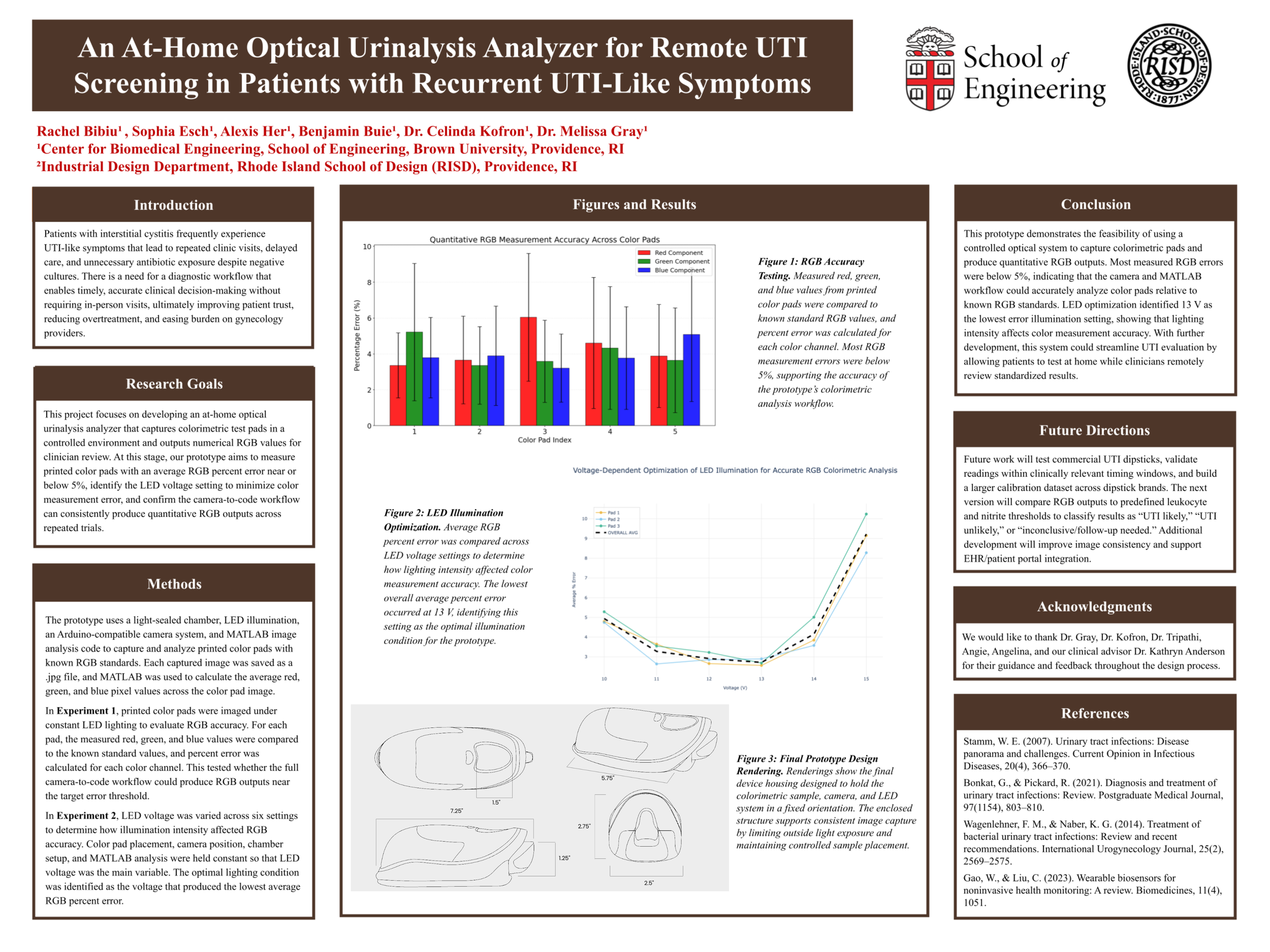

Capstone Abstract 1.jpg

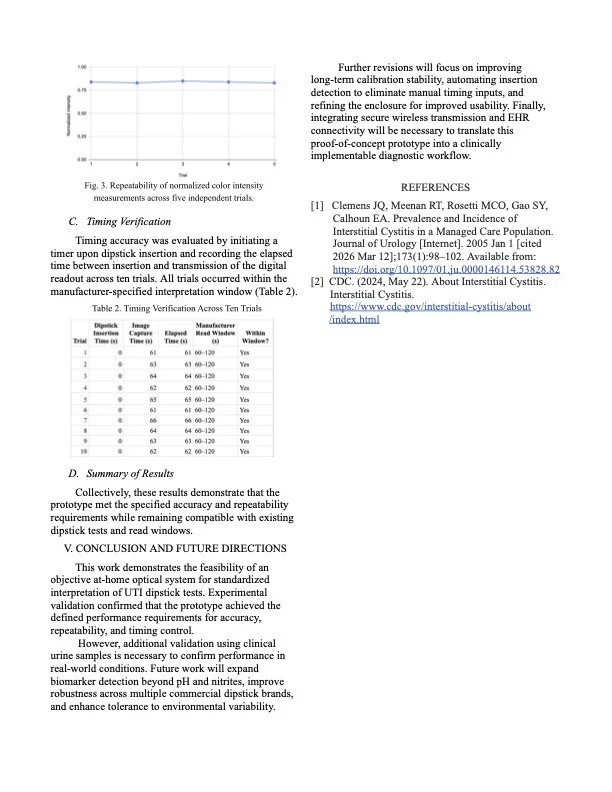

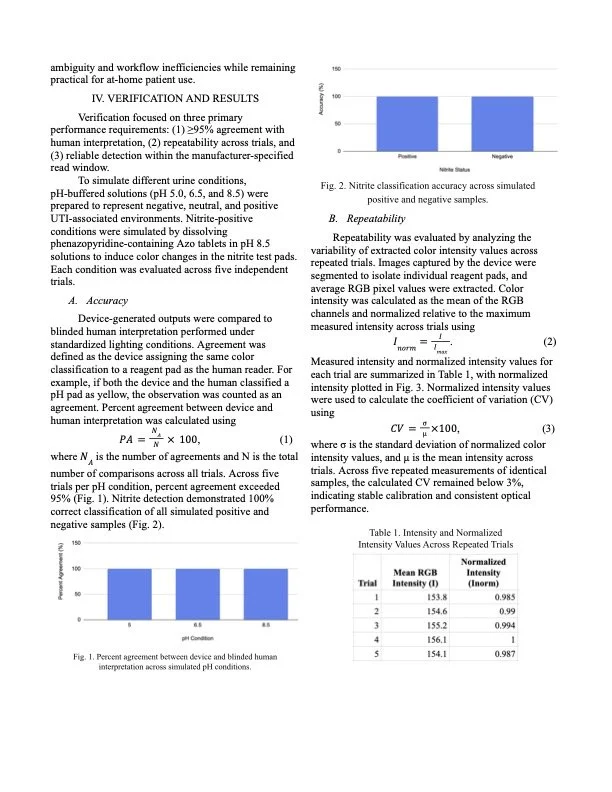

Capstone Abstract FINAL.jpg

Capstone Abstract FINAL.jpg





Untitled_Artwork 33 copy.jpg

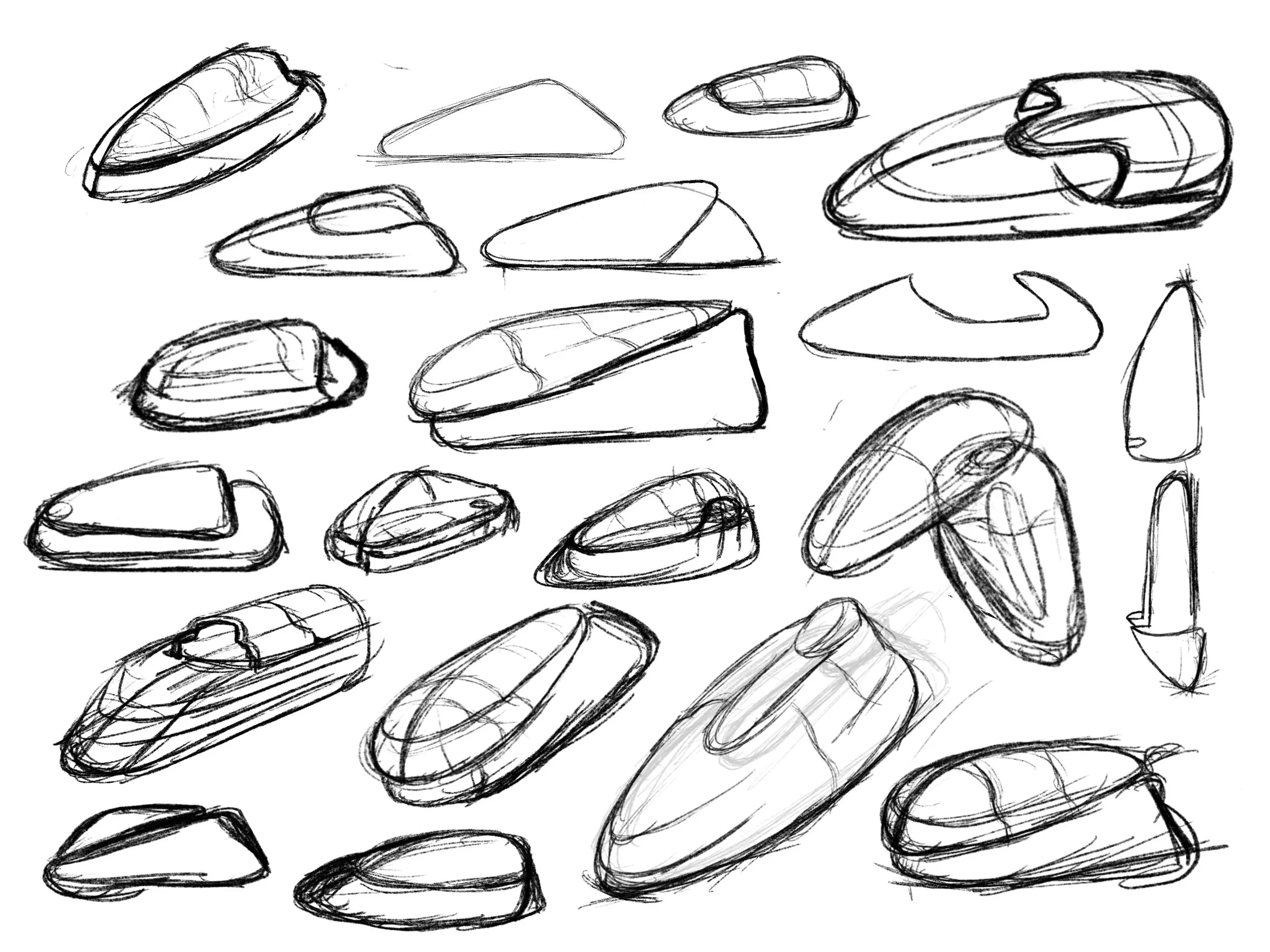

Untitled_Artwork 32 copy 2.jpg

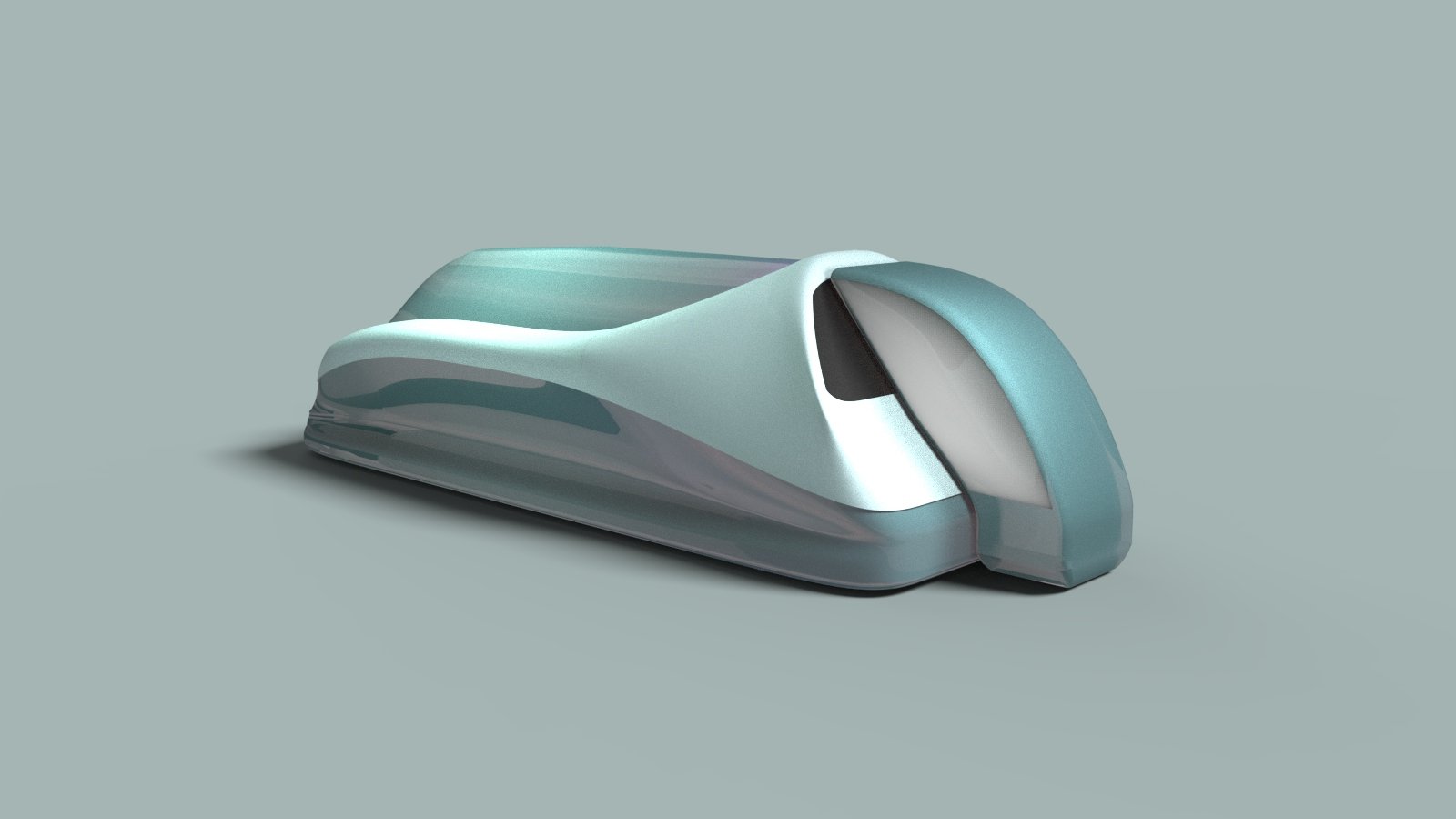

uti render.66.JPEG

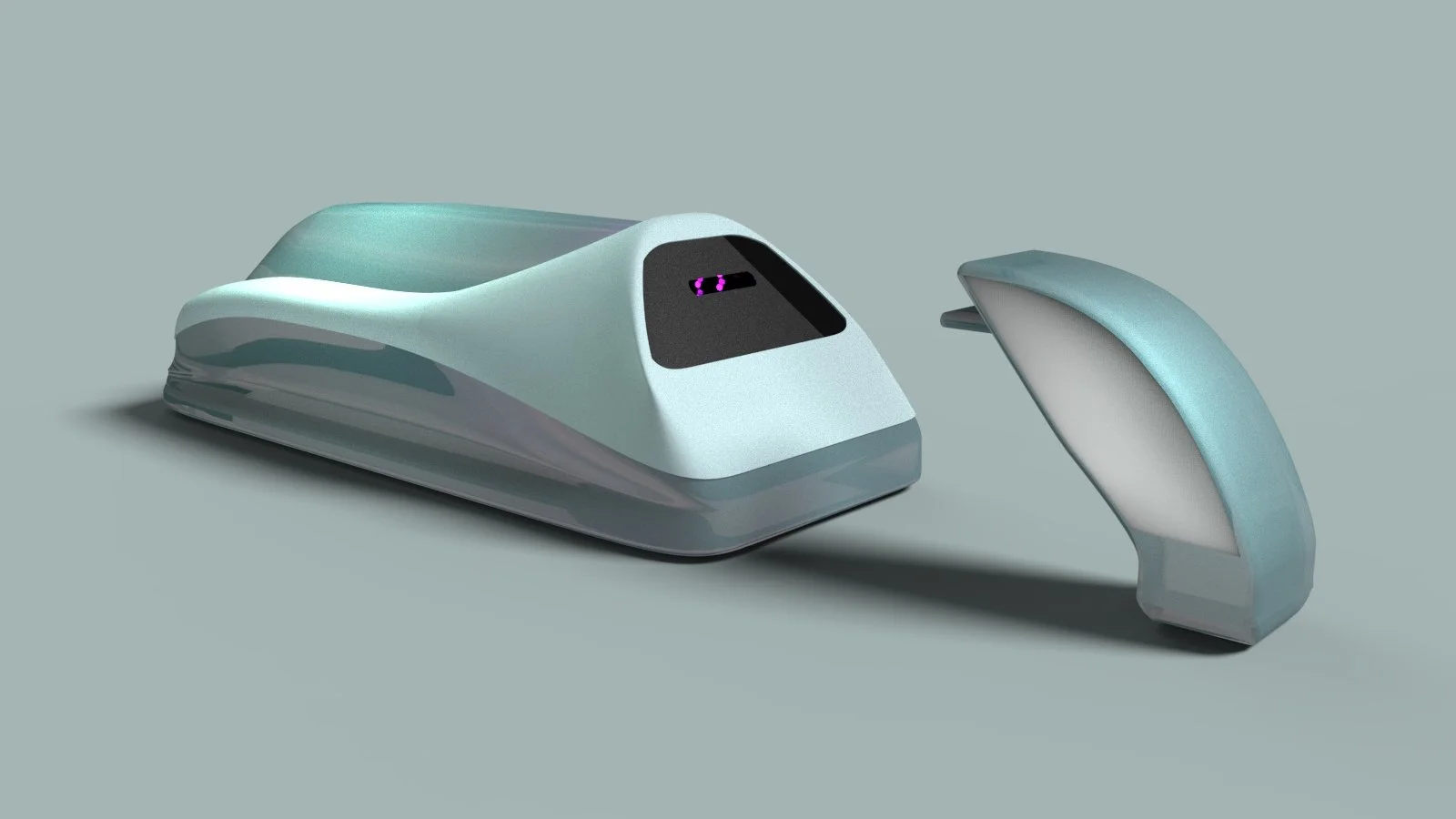

uti render.68.JPEG

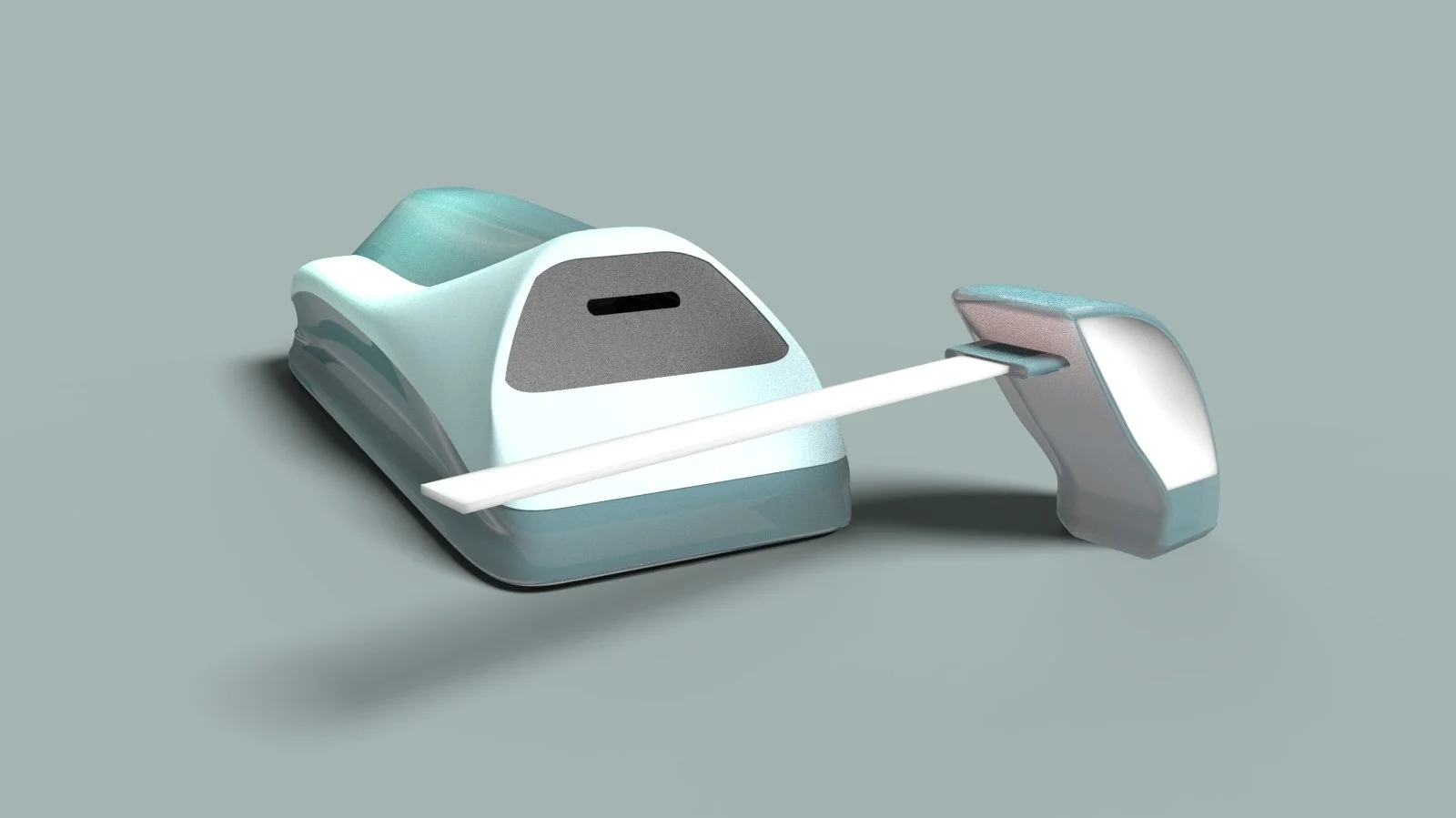

uti render.71.JPEG

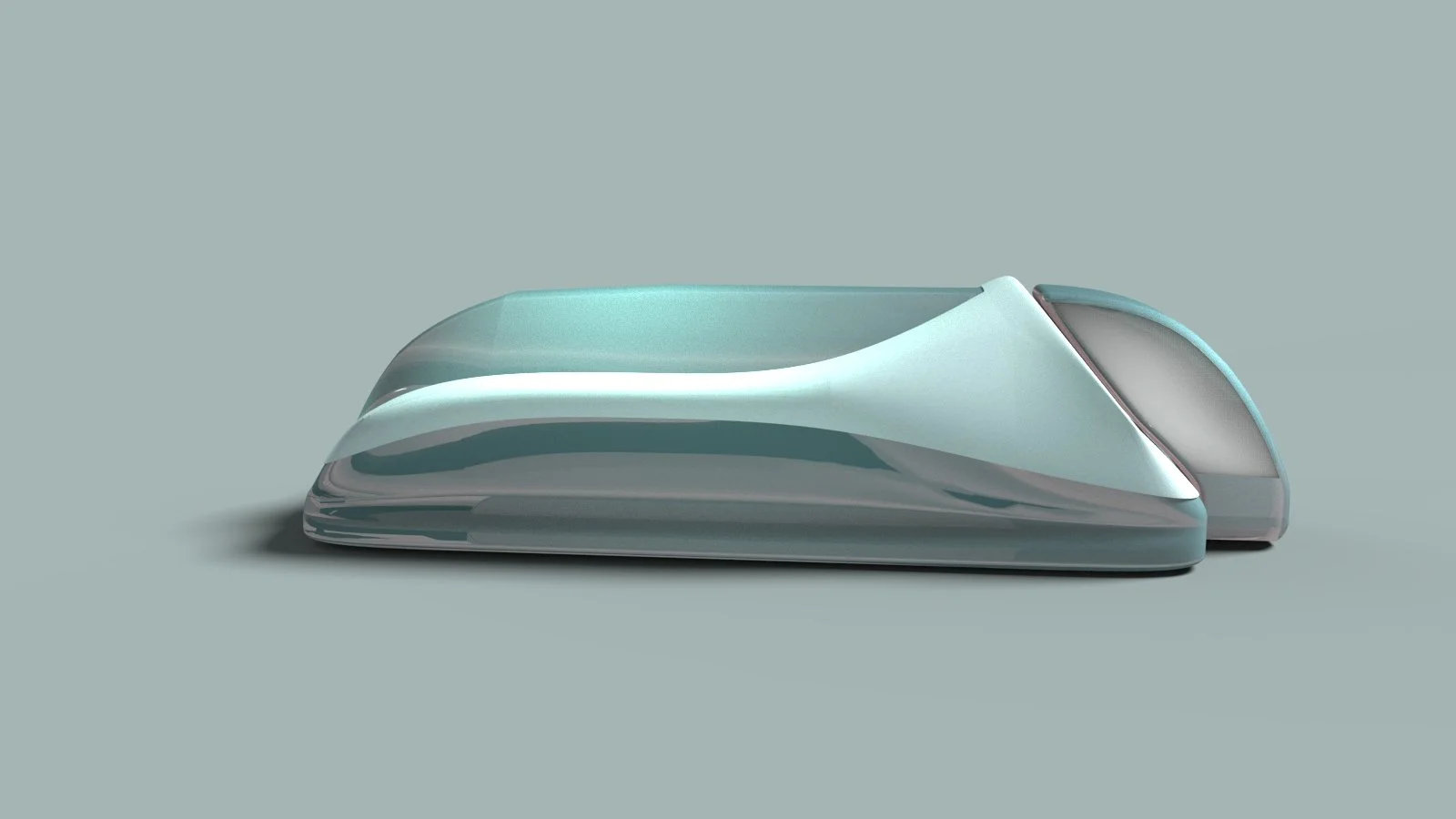

uti render.70.JPEG

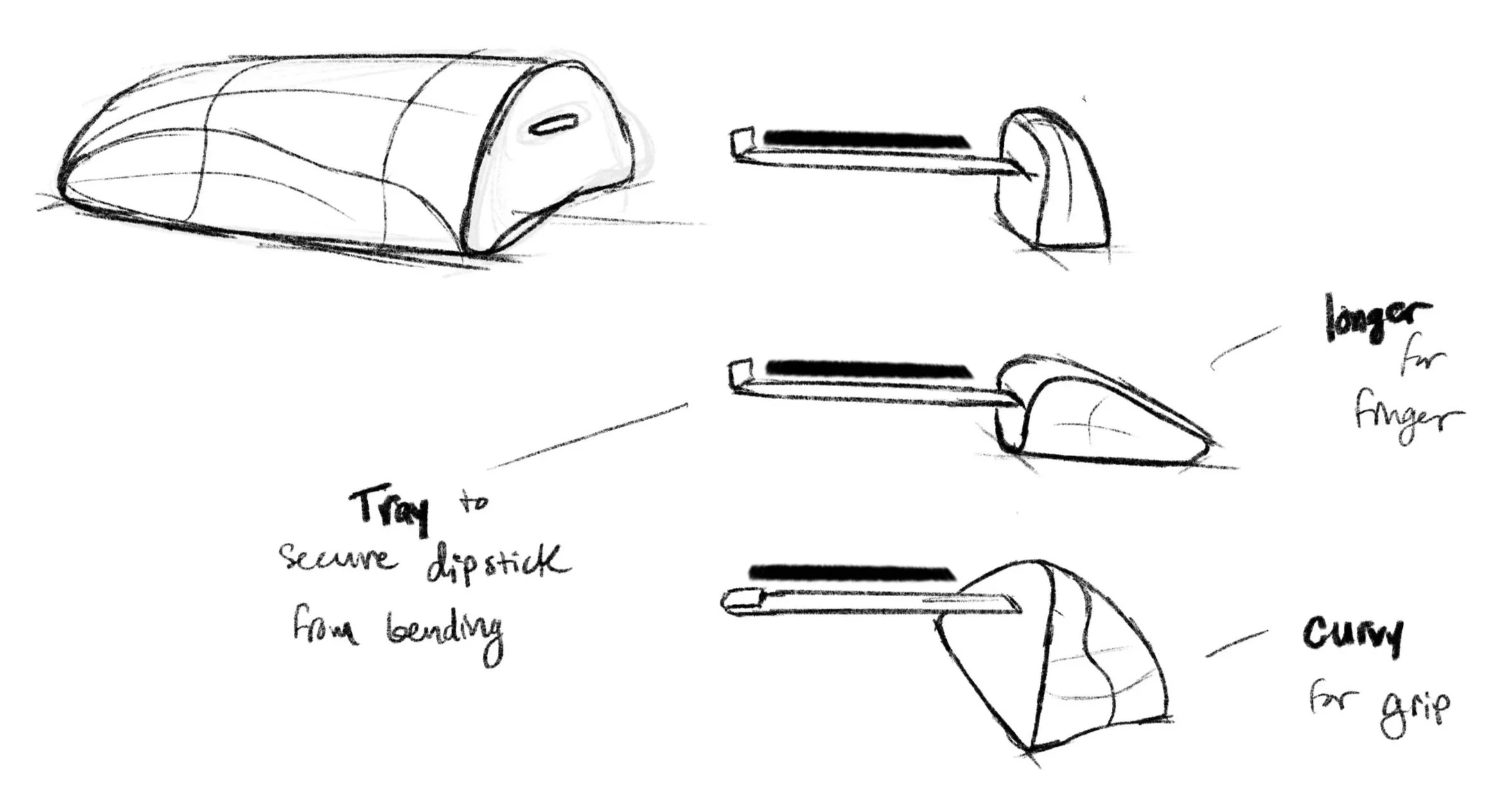

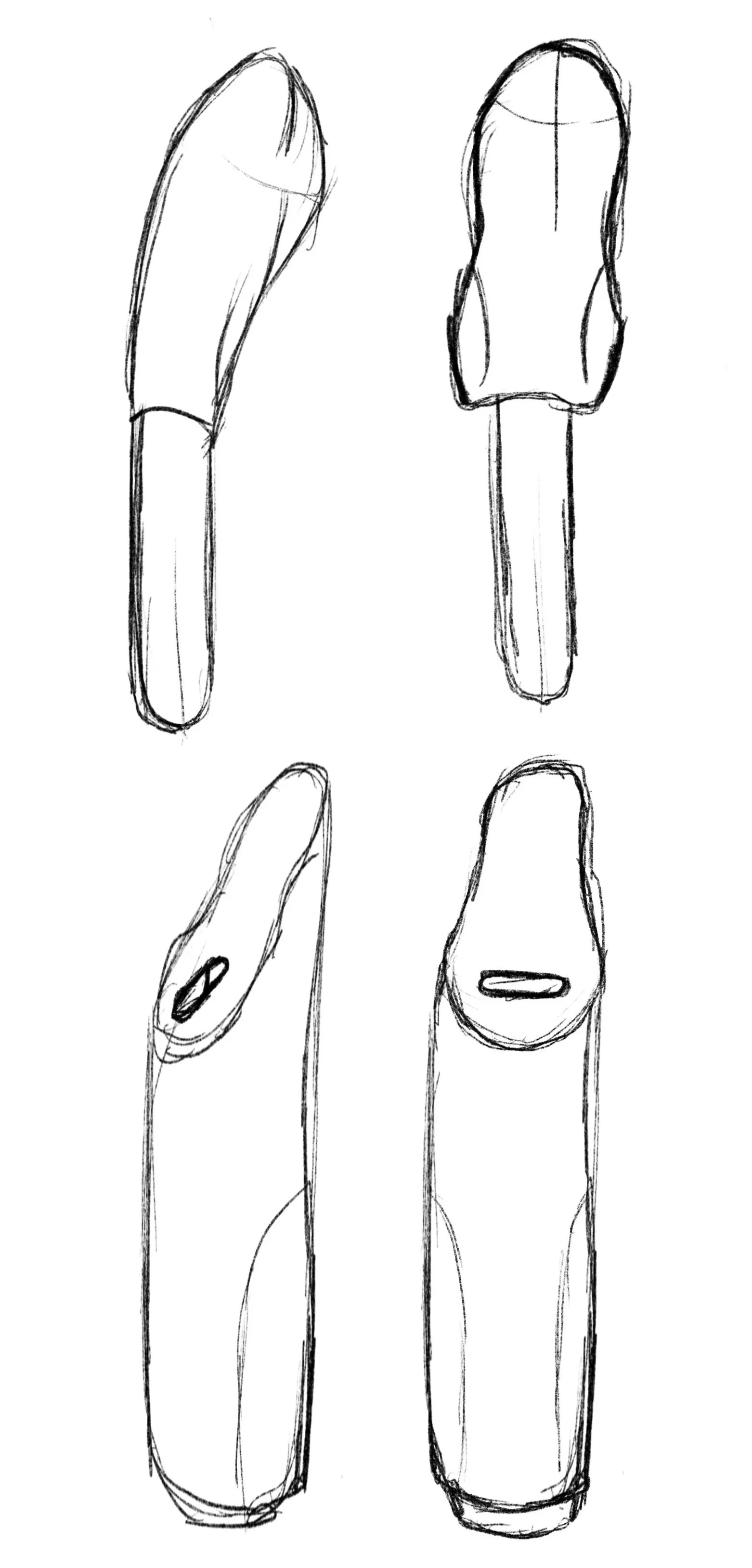

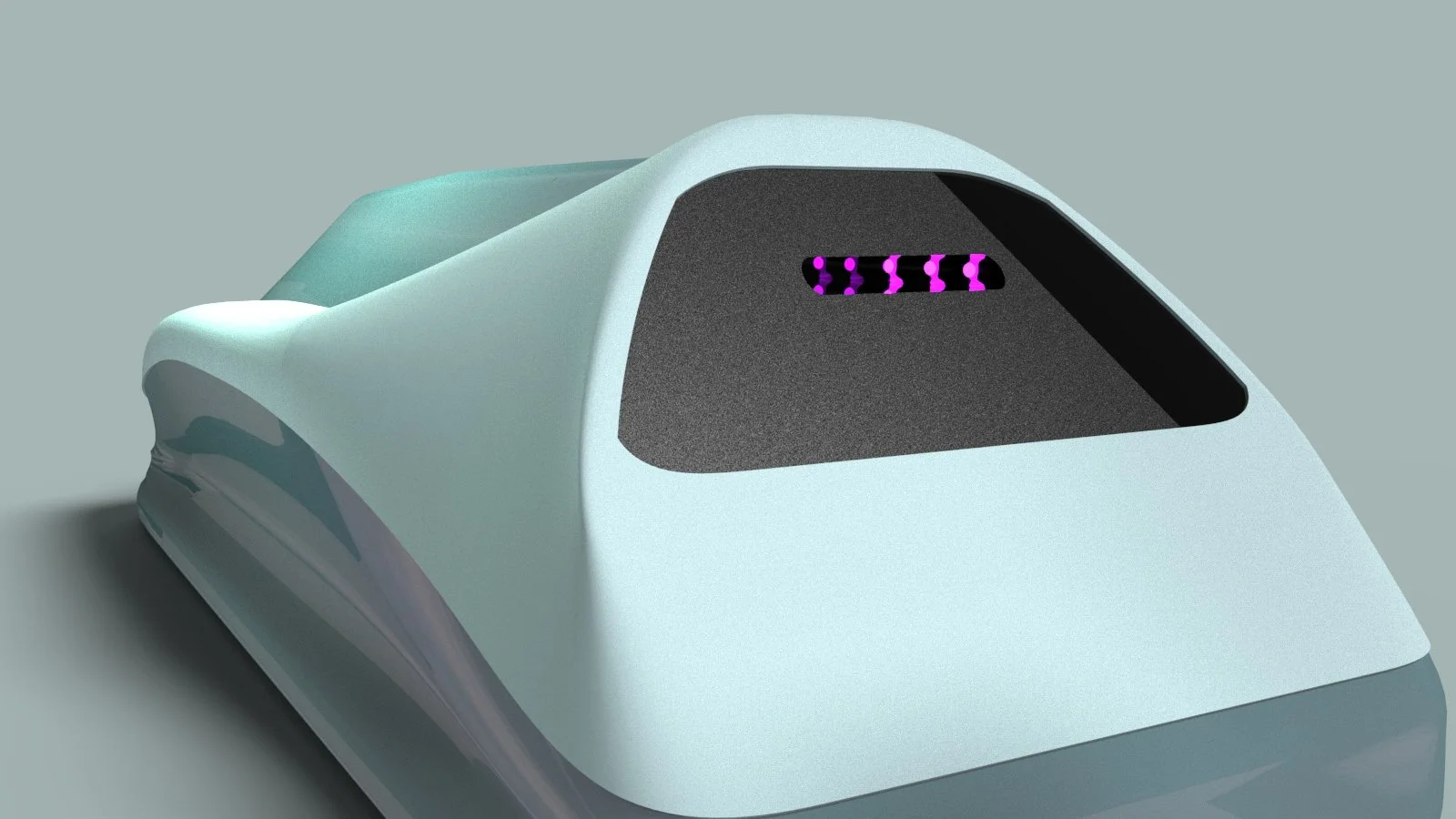

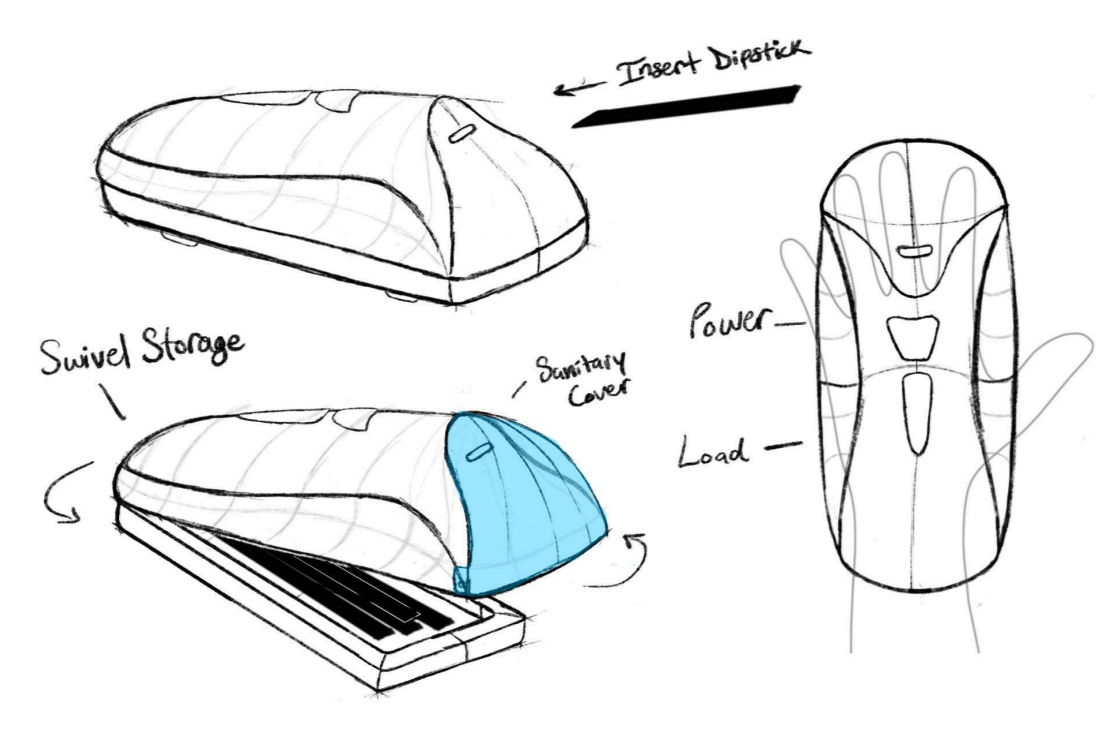

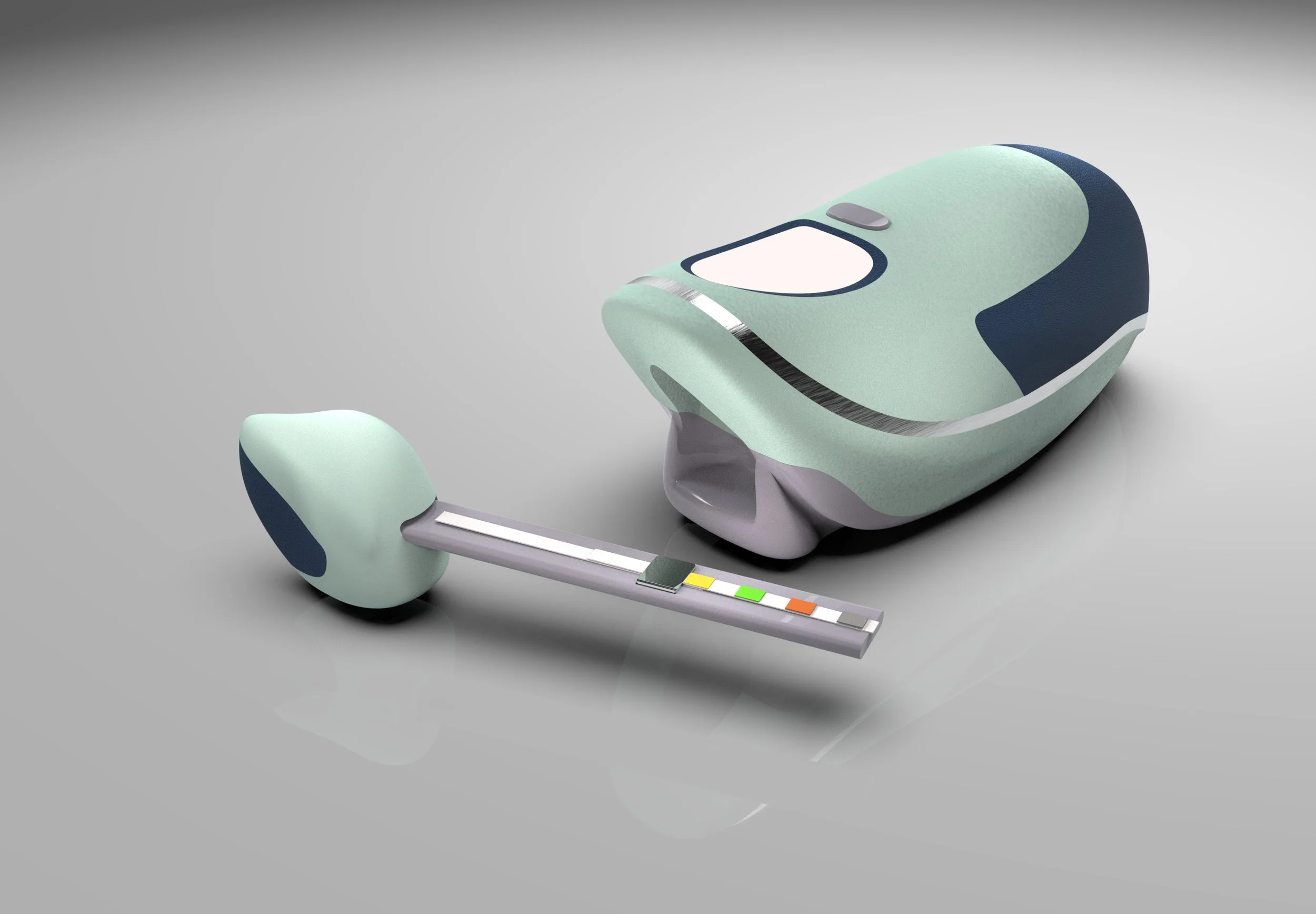

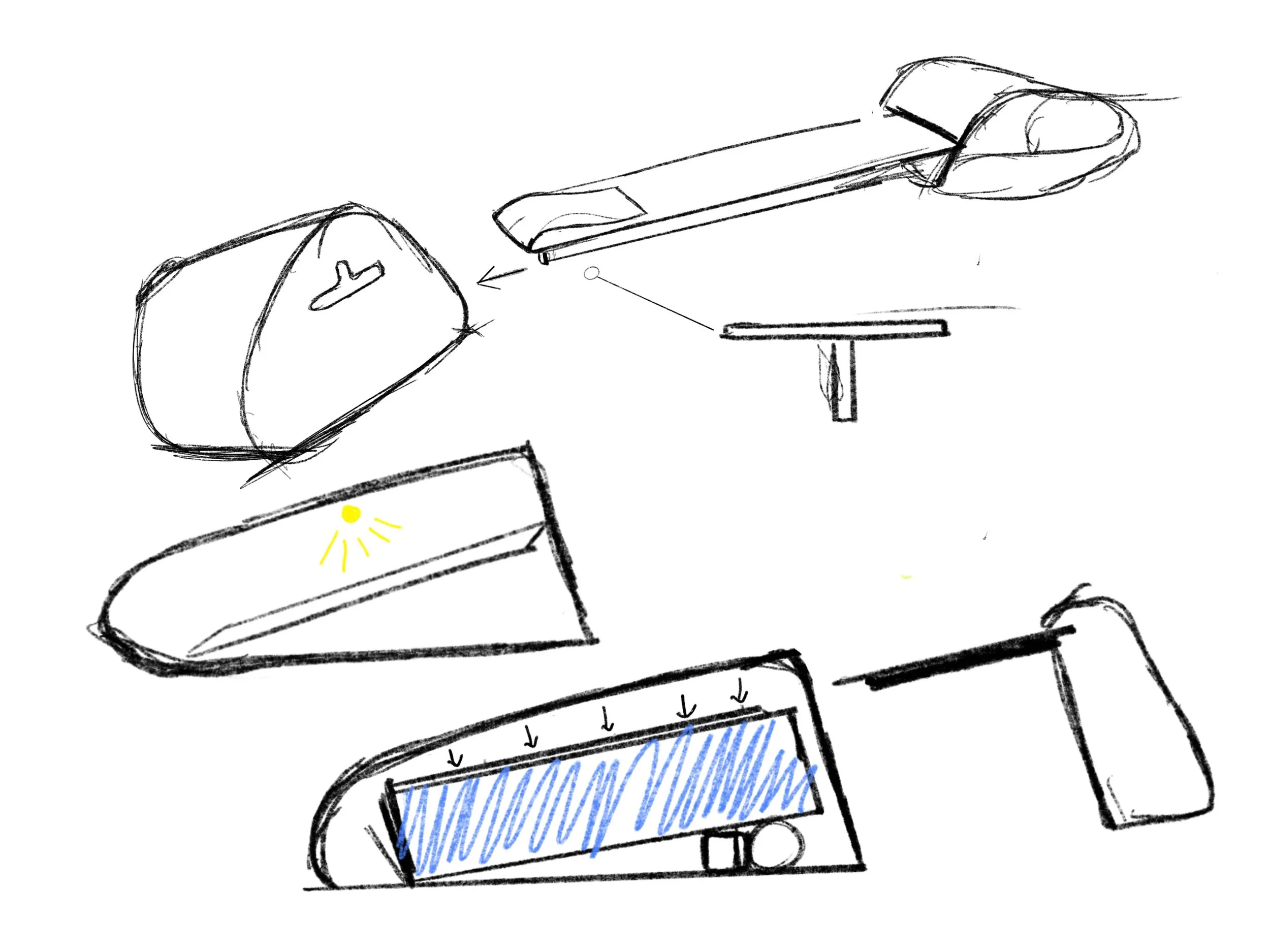

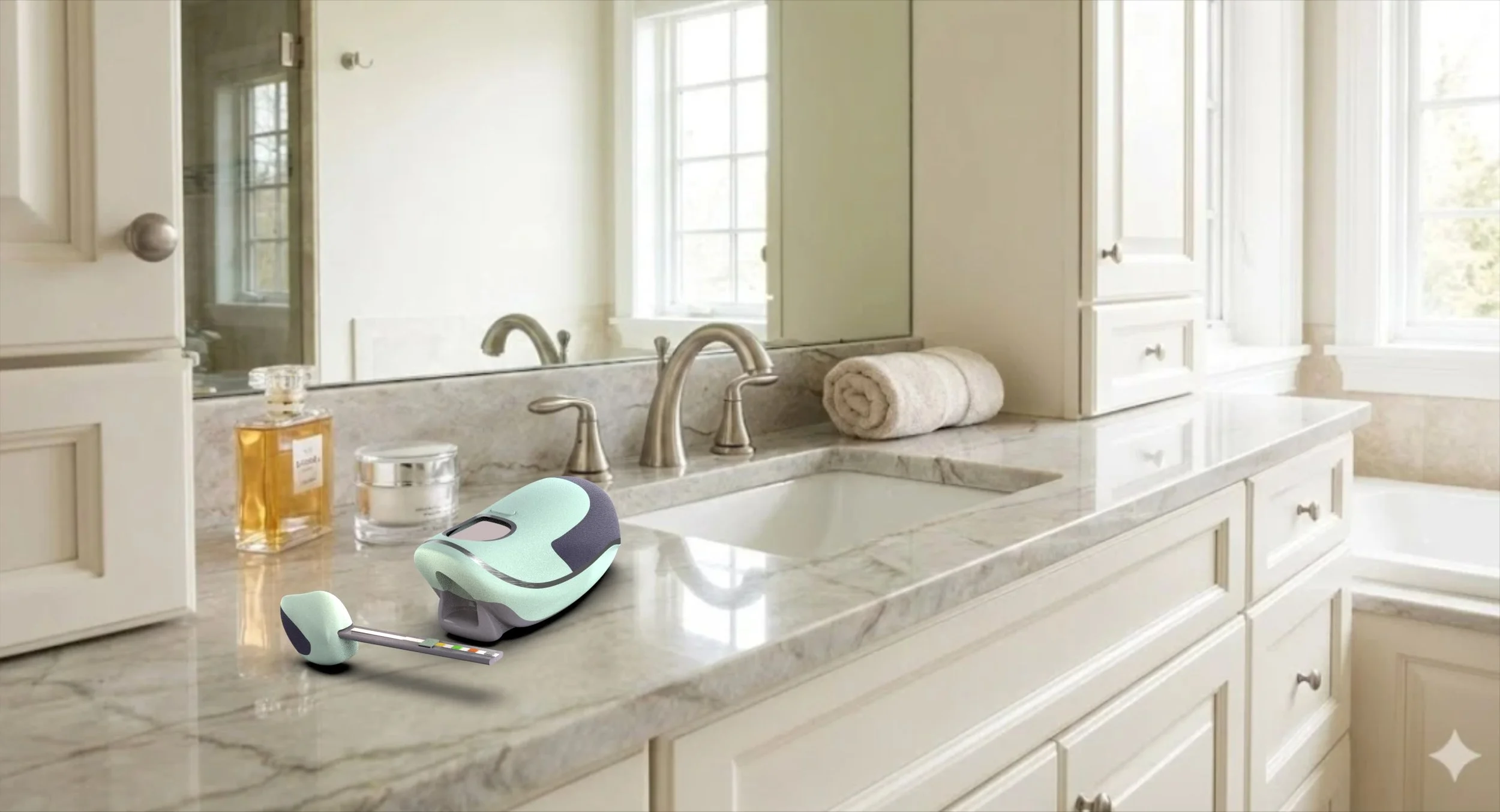

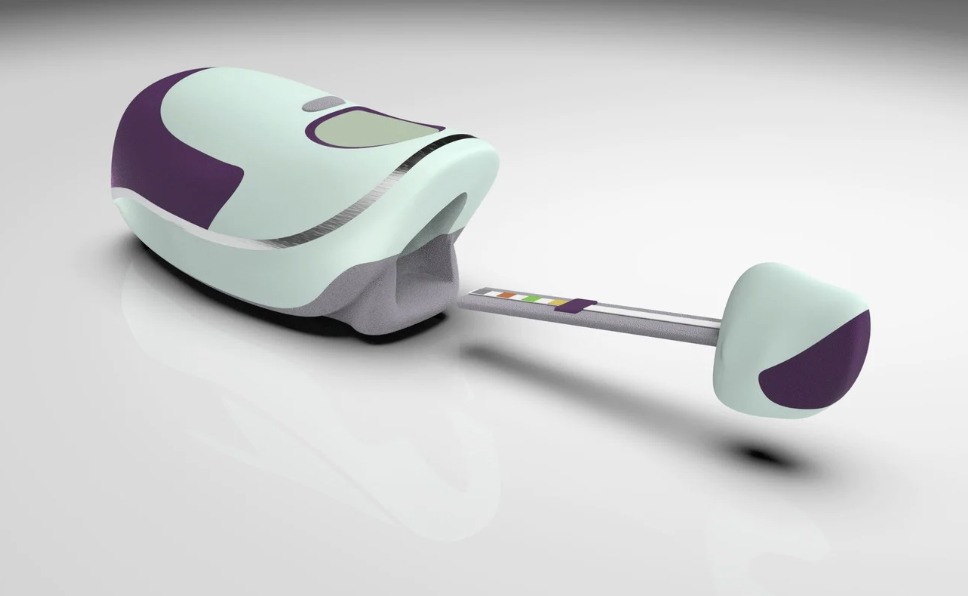

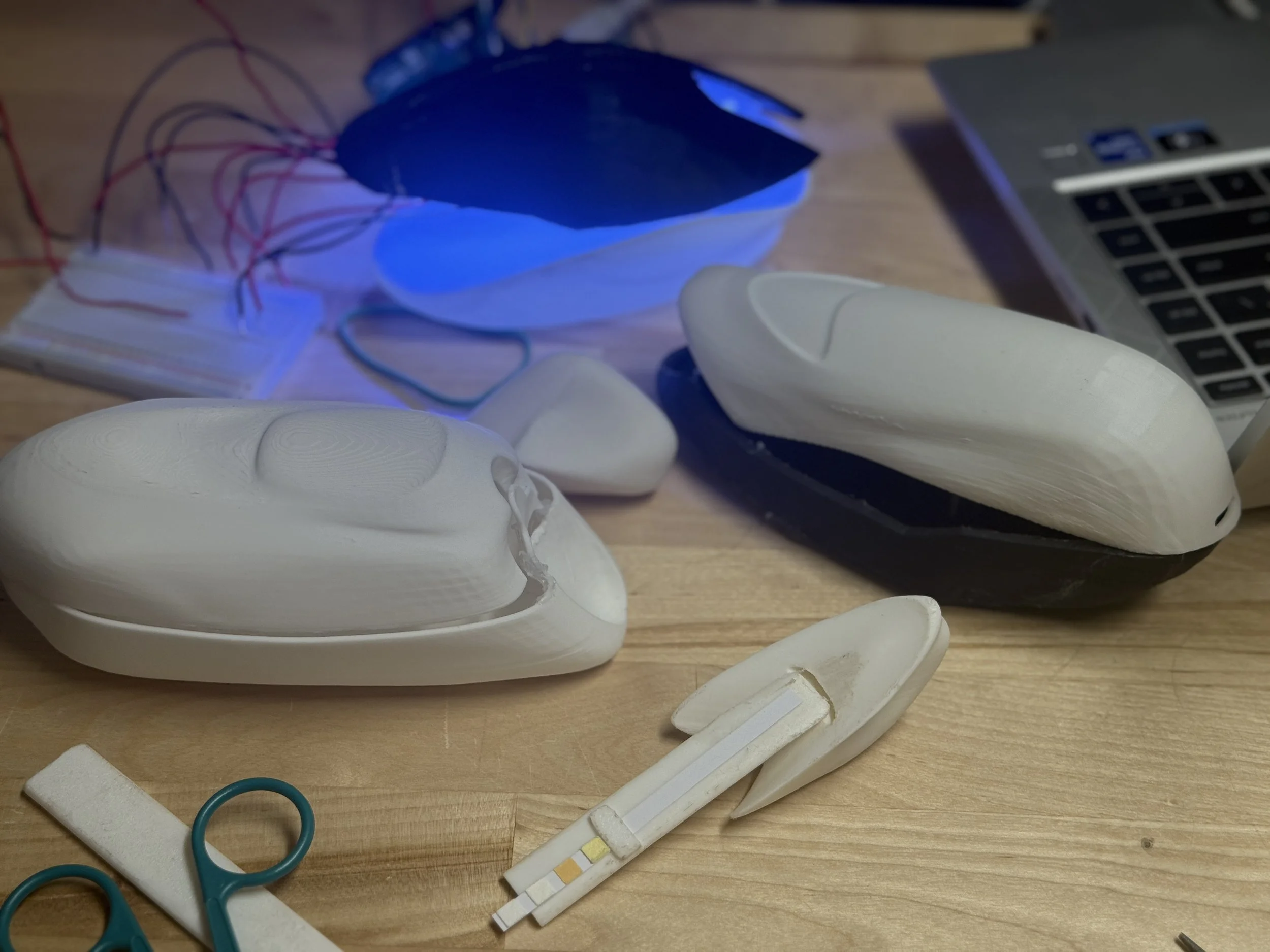

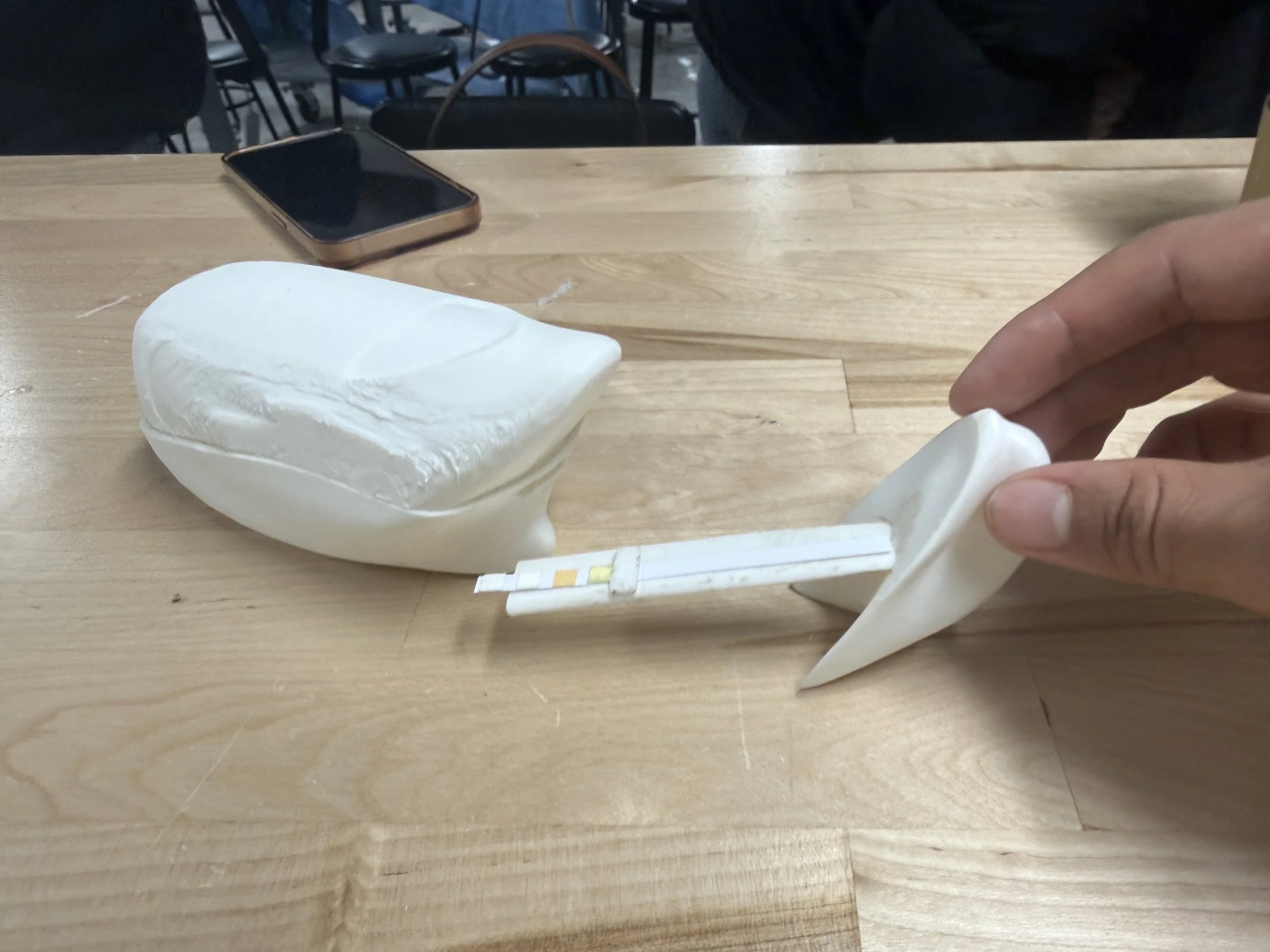

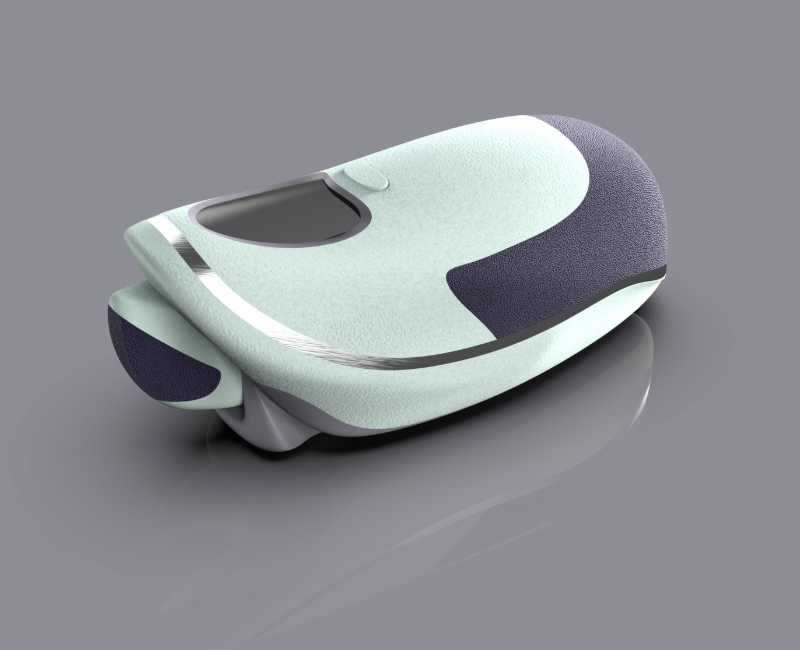

The cap serves as a finger-pinch holder for a standard dipstick, ensuring reliable, mess-free clean-catch sampling; the stick is then inserted into the slot for 4k camera analysis and UV self-sanitation. The device converts color pads into standardized quantitative values and securely sends results to an electronic health record (EHR),

uti render.69.JPEG

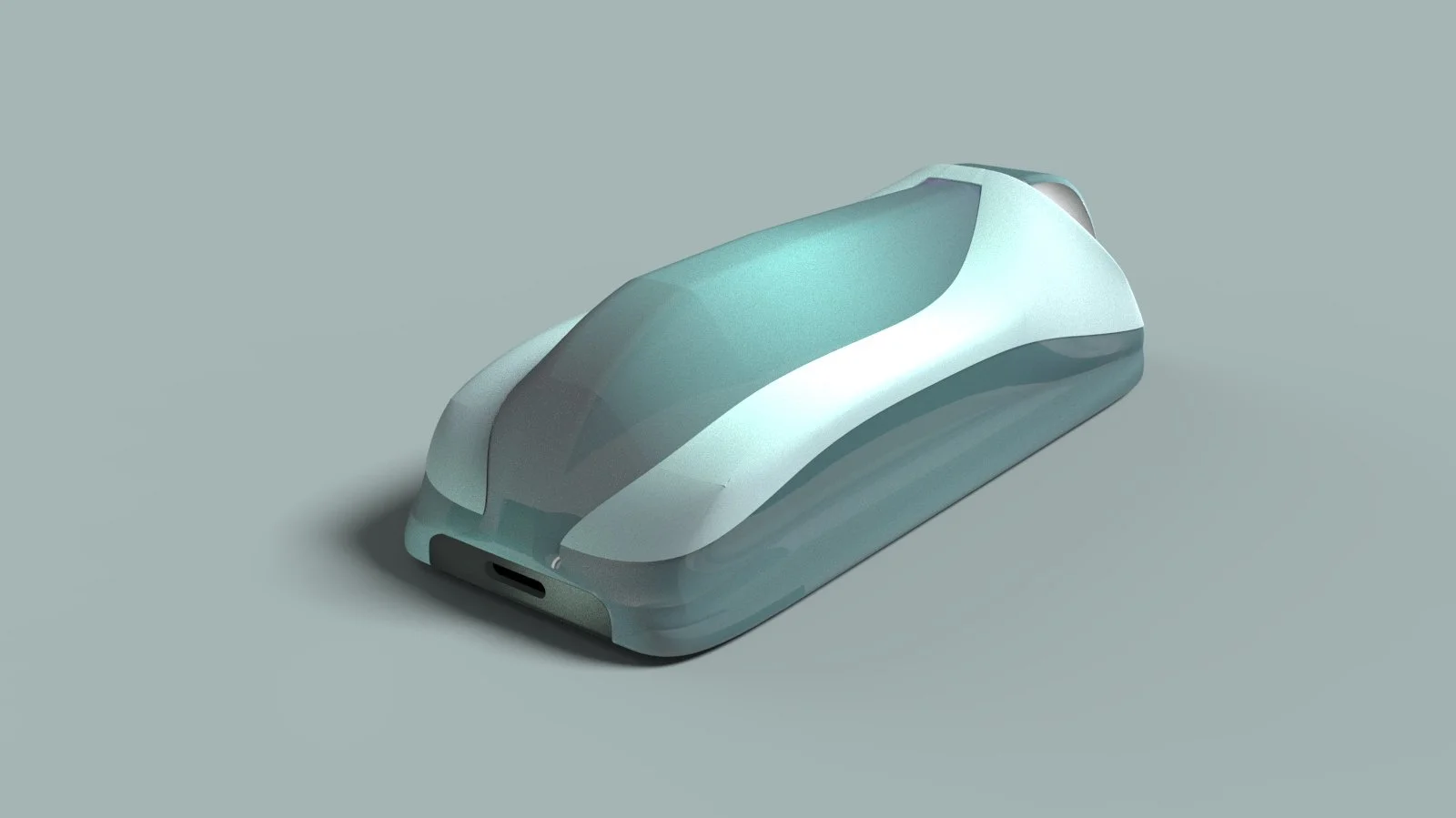

uti render.72.JPEG

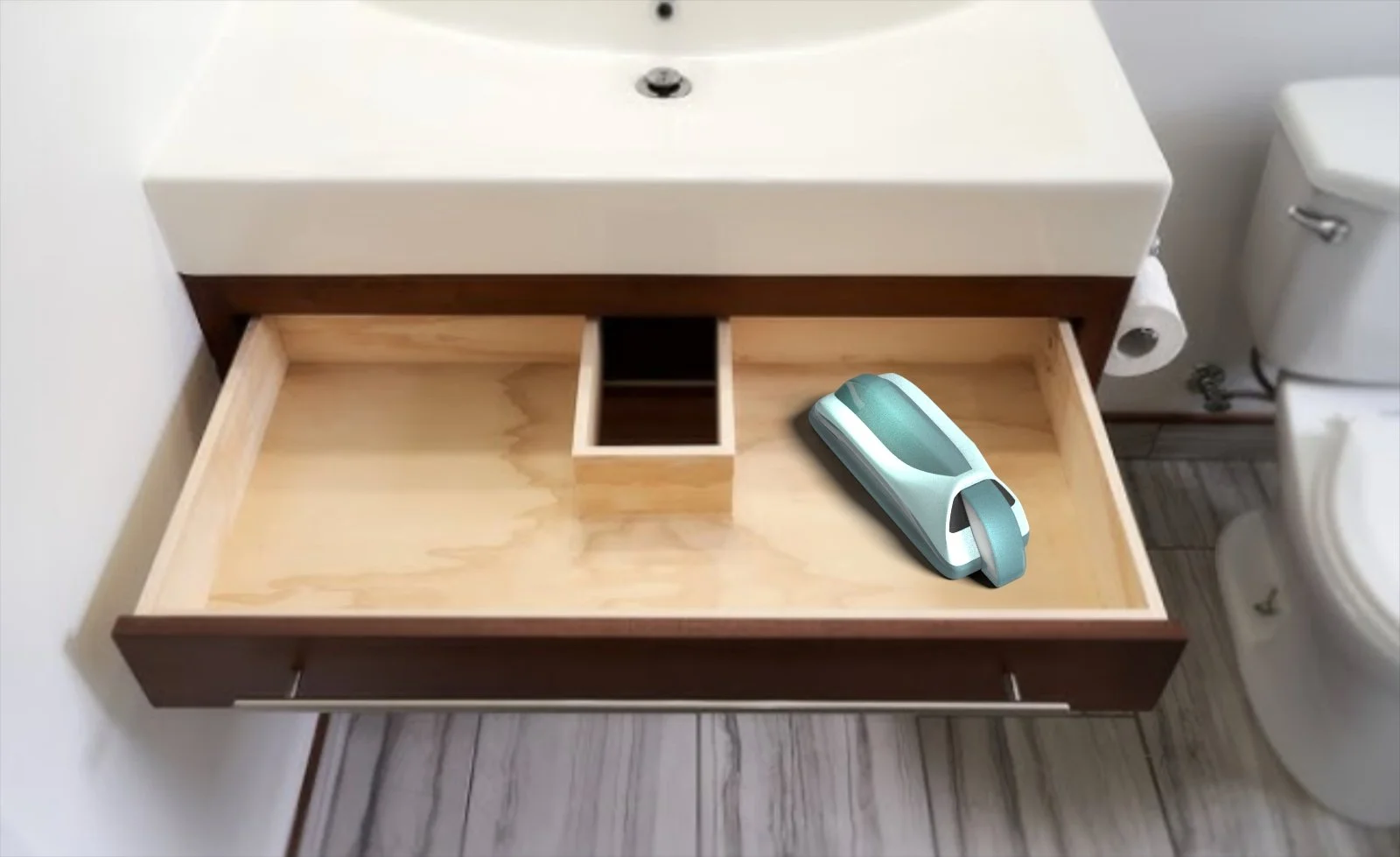

uti render.73.JPEG

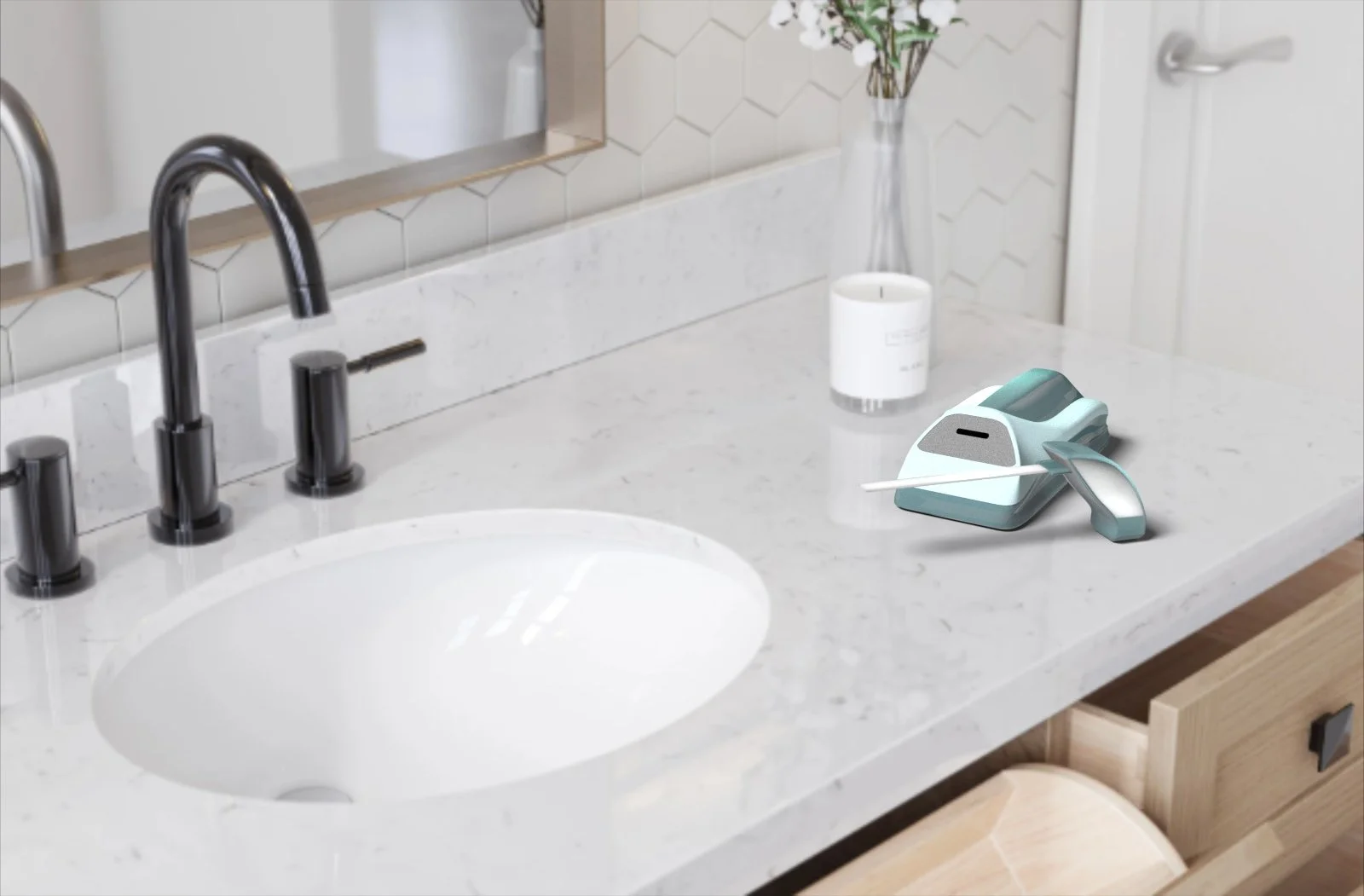

uti render.74.JPEG

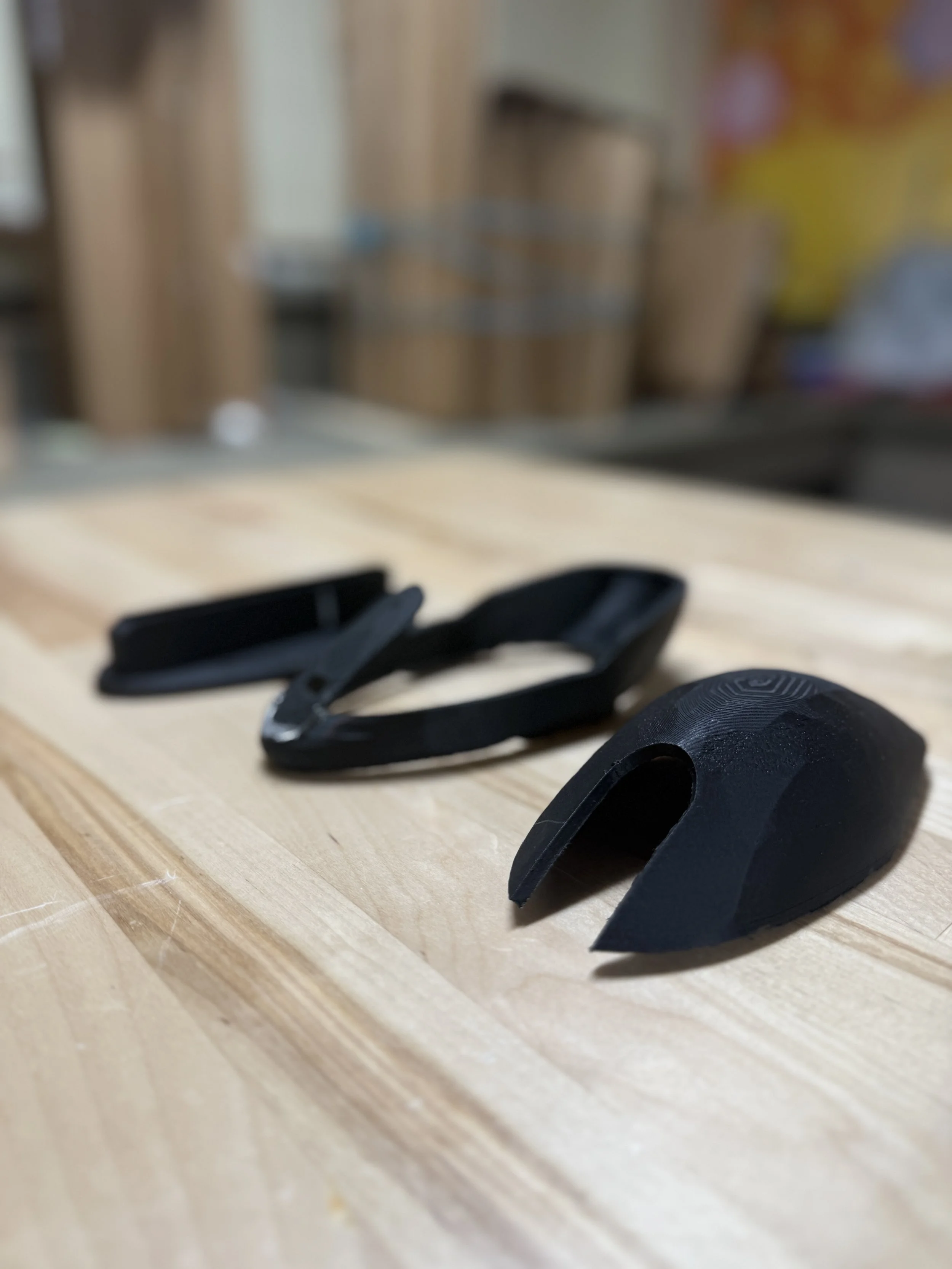

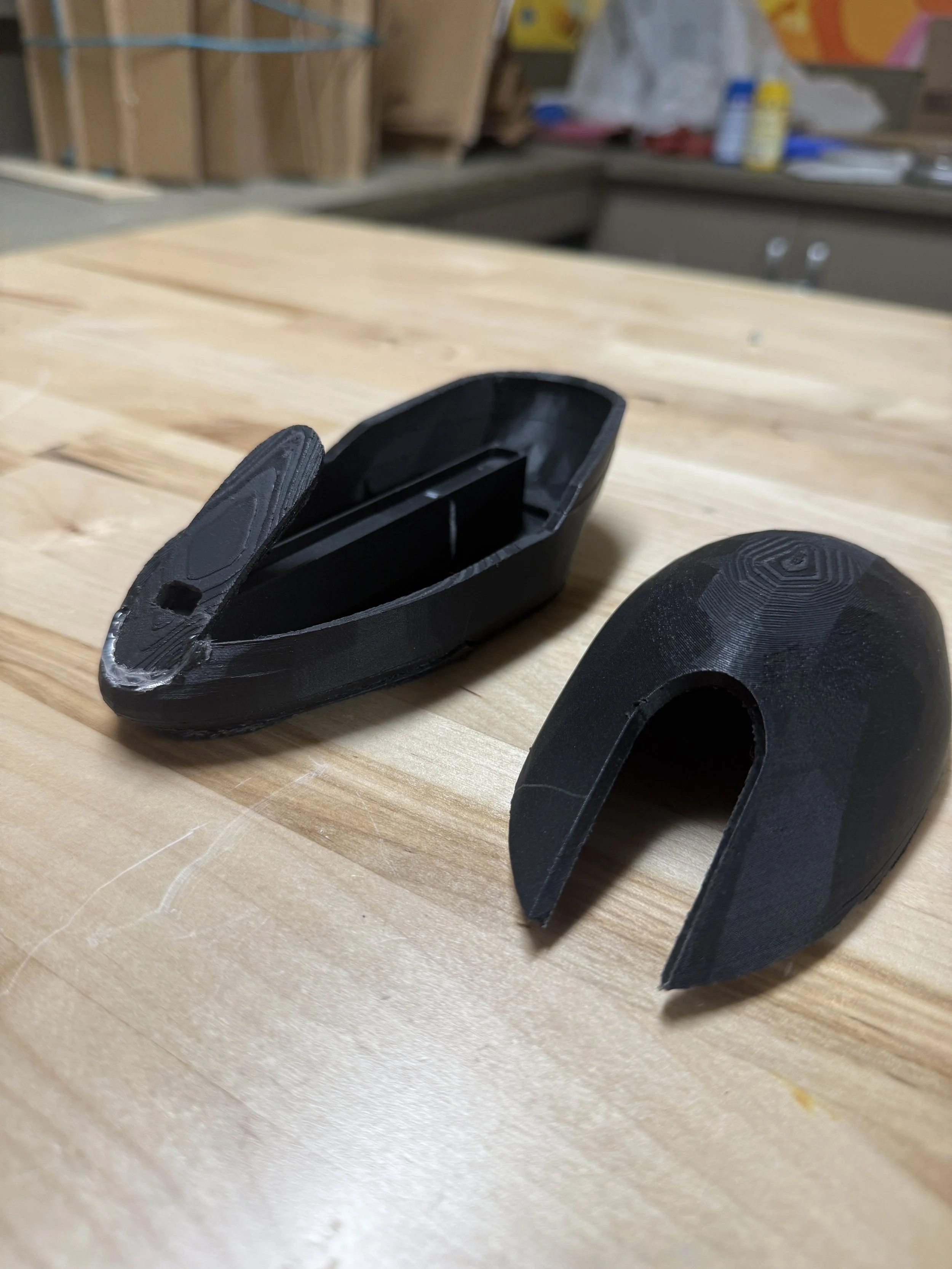

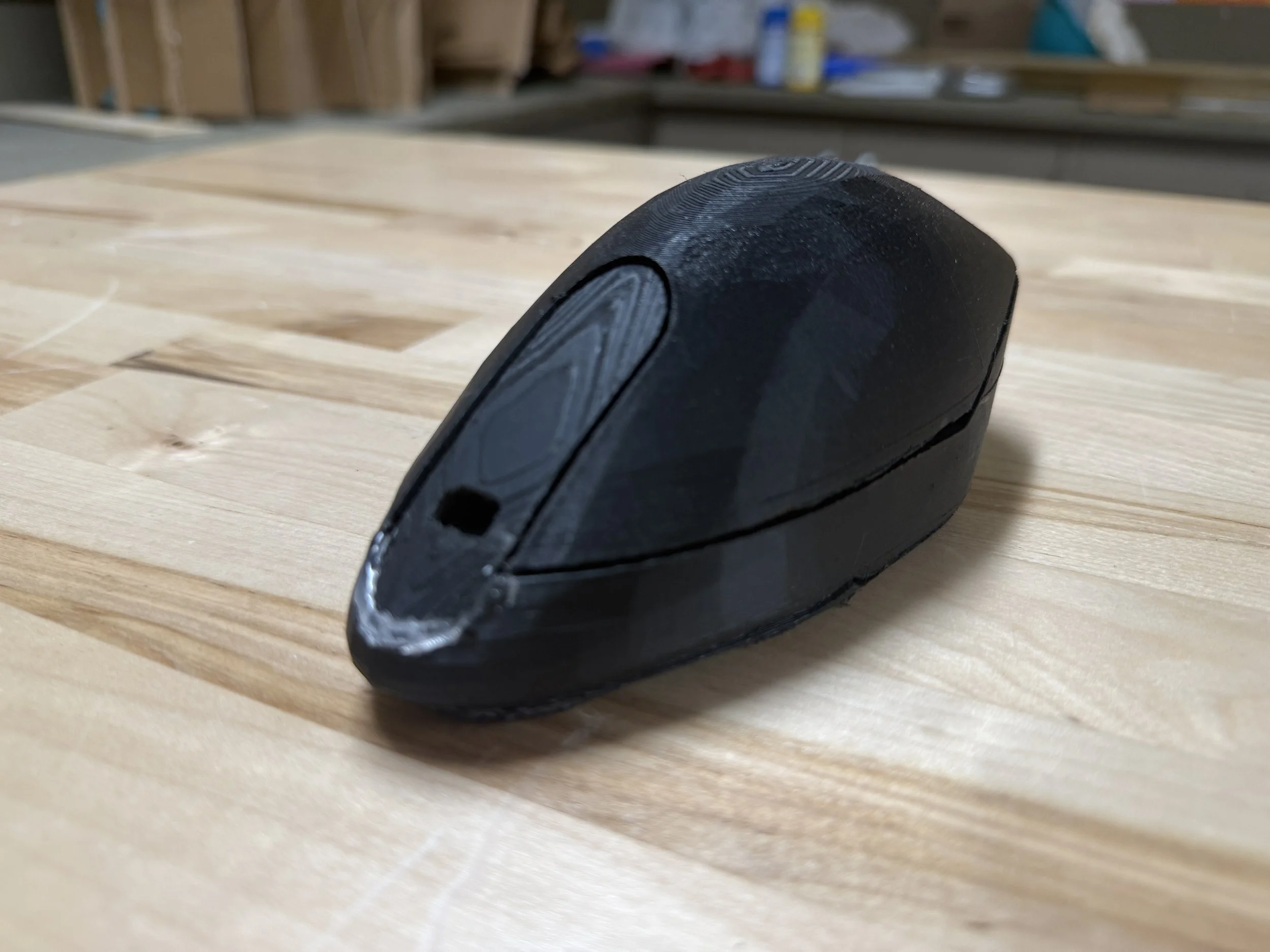

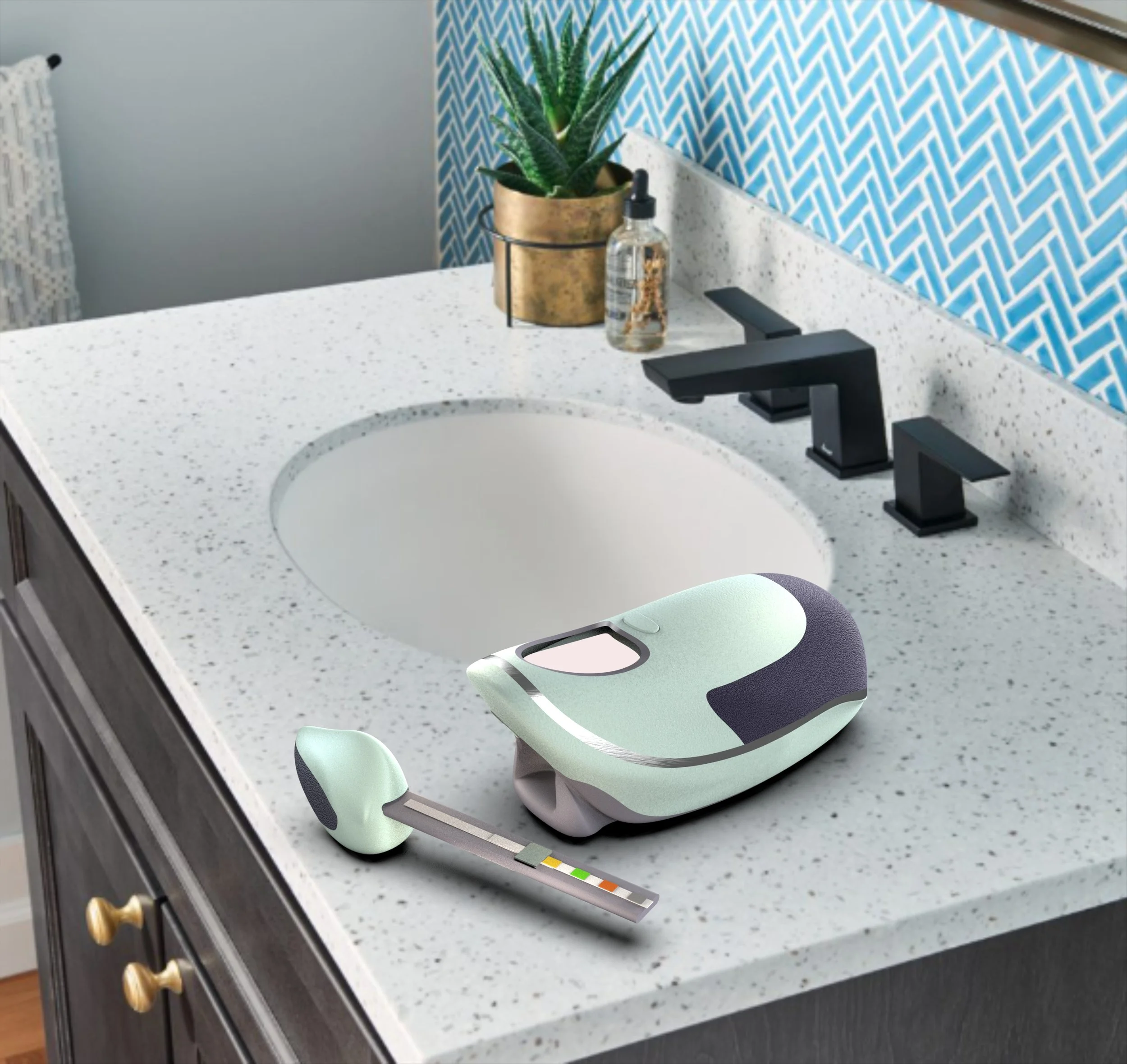

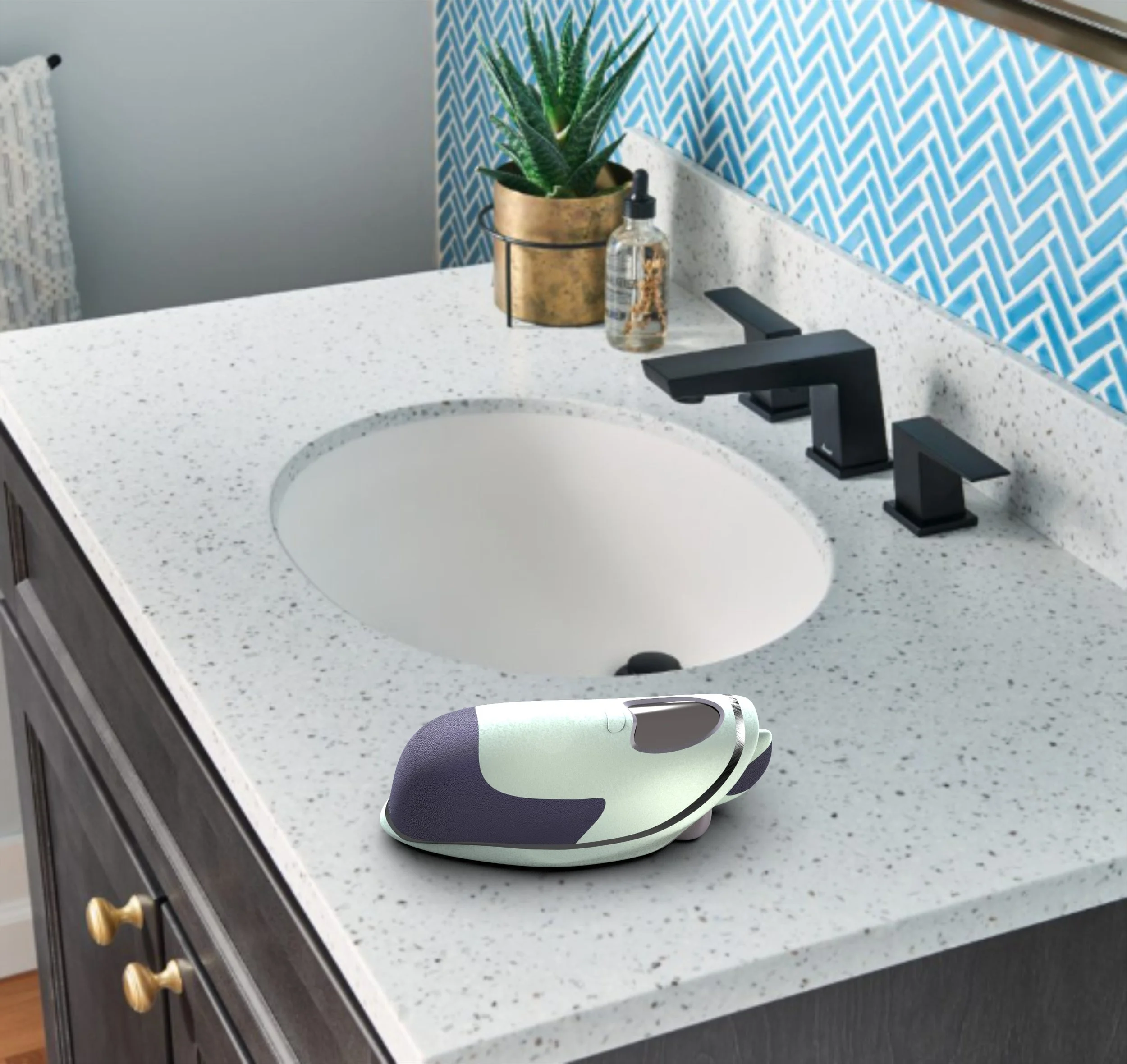

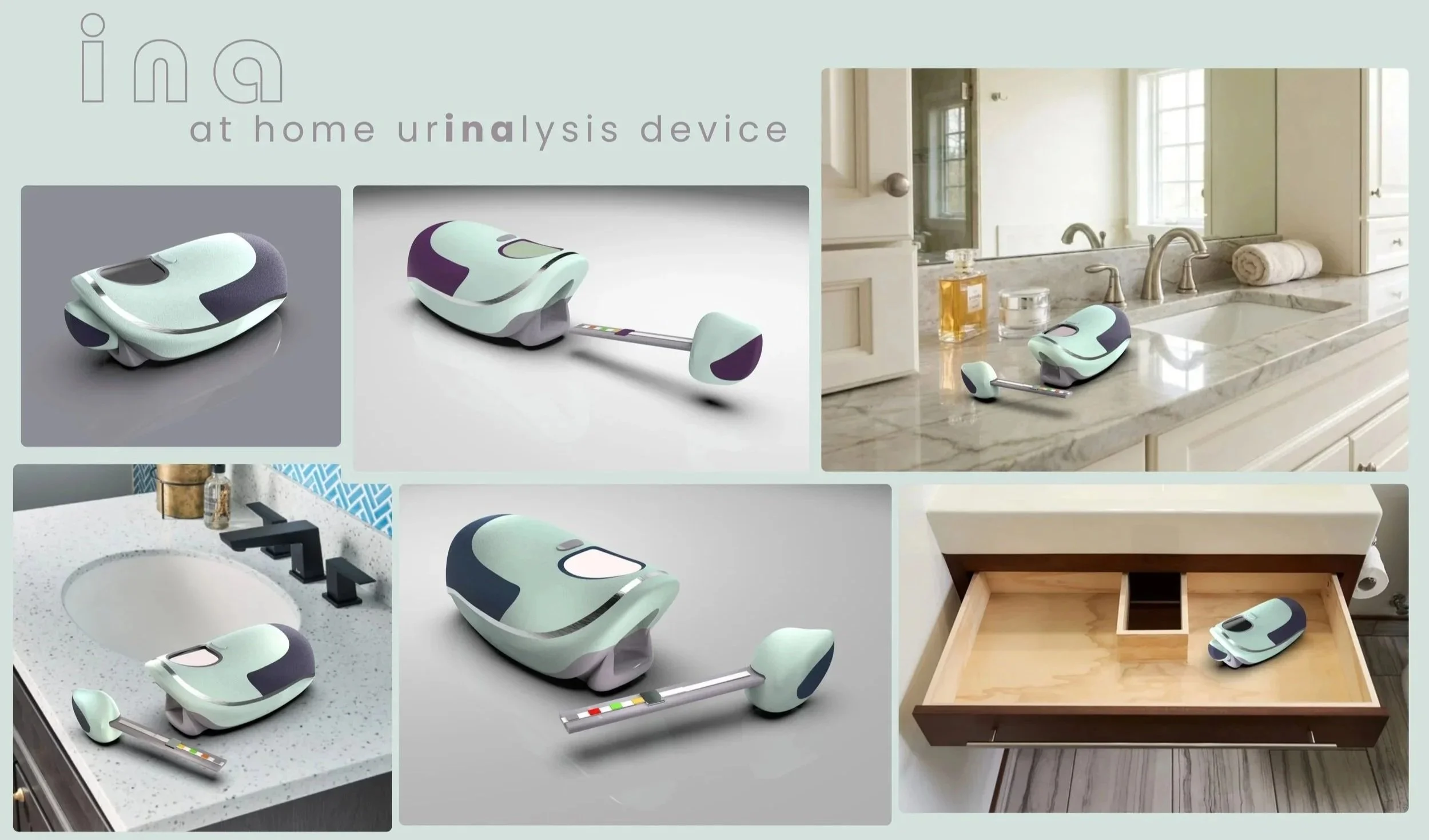

This initial design merely demonstrates our desired device’s gestures, dimensions, storage, and features. Our discreet home-based device digitizes UTI dipsticks and transmits results to an EHR (e.g., MyChart), streamlining diagnostic workflows, reducing overtreatment, and enabling timely access to appropriate care.
